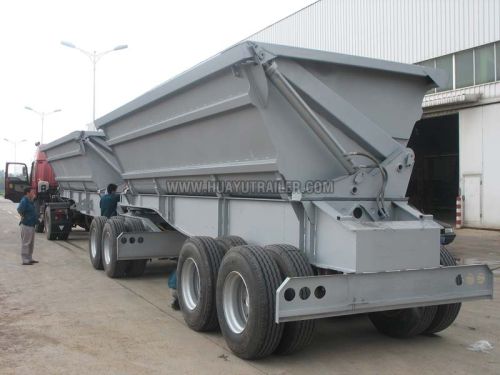

Dump Trailer Side Wall Train

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We manufacture mechanically suspended Dump Trailer Side Wall Train that promises high levels of performance and efficiency. It is also easy to operate and does not require much maintenance. It is equipped with four double and two single brake chambers for maximum safety. The specifications can be altered according to the needs and requirements of the consumers. Our delivery services are known to be prompt and punctual.

View More Details

Send Enquiry

Details

Type	Box semi trailer
Shipping terms	Shipping bulk cargo
Weight	----
Tare weight	6680kg--8500k
Loading capacity	30t—60t
Axle weight load	13t/16t
Specification	----
Axle number	3
Axle specs	Fuwa /hj /bpw
Suspension	Common mechanical suspension
Wheel	11.00R22.5/12.00R22.5 vacuum tire/triangle or double cone brand
King pin	JOST 50#/90# traction pin
Dimensions (LWH)	1460025503930,3730,3530mm 1445023502700,2500,2300
Support legs	28tons JOST D200
Rim	8.2522.5/9.0022.5 vacunnm tire zhengxing brand
Wheelbase	8280+1310+1310
Steel spring	10/10/10 pieces per axles
Twist locks	4 pieces
Tire	----
Tire number	Can be choose freely
Spare tire carriers	2/4 pieces
Frame	----
material of main beam	The height of the beam is 450/500 mm.upper plate is 14mm.down plate is 8mm.if choose the SSAB high stress steel .the uper and down plate is 8mm .middle plate is 5mm.side board thickness is 1.2/2.3 mm with 28pieces lock bar
Platform plate	3mm diamond /flat platform
Brake	----
Brake	Kemi brand of china
Brake chamber	Four double and two single chamber (TKL brand )
ABS system	Without
Electrical	----
Voltage	24v
Receptacle	7 ways(7wire harness)
