Dump Truck

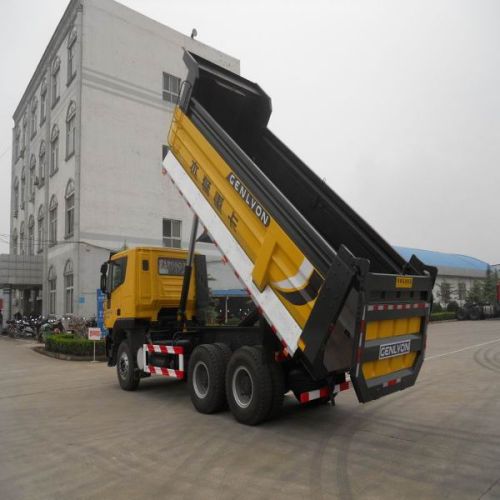

We are offering iveco genlyon 6x4 340hp dump truck.
Price and payment terms
no. model cq3254htg384 note
1 unit price usd40000-60000(fob shanghai port)
2 time of delivery within 45 working days after receiving down payment
3 payment terms 30% advance payment by tt before production + 70% deposit by tt before delivery
technical specification
no. specification parameter note
1 model cq3254htg384 　
2 cab genlyon cab-left hand drive, with ac yellowredwhite
3 drive 6×4 　
4 rated payload（kg） 12,000 　
5 kerb weight（kg） 12,805 　
6 gross vehicle weight（kg） 25,000 　
7 overall dimension（mm） 8,516×2,500×3,510(l*w*h) 　
8 dump box dimension（mm） 5,600×2,300×1,400(l*w*h) 　
9 dump box volume (m3) 18 　
10 lifting cylinder hyva150 front lift 　
11 max speed（kmh) 85 　
12 wheelbase(mm) 3,825+1,350 　
13 engine cursor9 　
14 engine output(hp) 340 euro ⅲ
15 gearbox 10jsd140 (10-gear) 　
16 front axle iron cast i-shaped axle, capacity: 7,000 kg 　
17 drive axle double reduction, with differential lock ,18,000 kg 　
18 tyre 11.00r20 　
19 oil tank 350l aluminum
