Duplex Double Acting Piston Pump

We are offering duplex double acting piston pump,

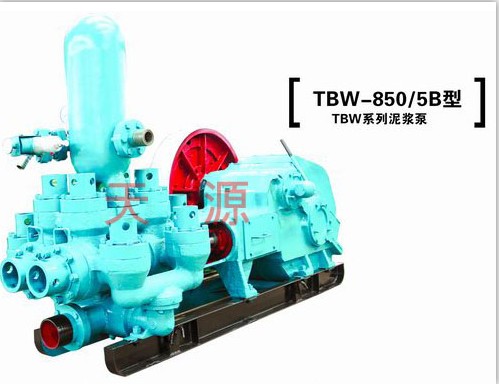

tbw-8505b mud pump
product usage
　　tbw-8505b mud pump is mainly used for supplying flushing fluid to the borehole in geology, water source, shallow oil and other drilling process. The fluid can be divided into mud, water, etc. It also can be used as transfer pump of the above mentioned medium.
main technical parameters
cylinder liner diameter （m）
φ140 φ130 φ95
piston stroke （mm）
260
rated flow rate （lmin）
850 600 350
rated pressure (mpa)
　　　　　　5 6 8
strokes per minute
66
suction pipe diameter (mm)
152
discharge pipe diameter (mm)
64.
