Duplex Flat Cable

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We offer premium quality Duplex Flat Cable. Strands of Aramid yarns are used as strength members to make the Duplex Flat Cable. These Aramid yarns are applied over tight buffer fibers in the Duplex....

View More Details

Send Enquiry

Company Information

Ningbo Full-link Photoelectric Limited

Province

View Number

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2008

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

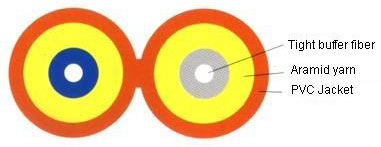

We offer premium quality Duplex Flat Cable. Strands of Aramid yarns are used as strength members to make the Duplex Flat Cable. These Aramid yarns are applied over tight buffer fibers in the Duplex indoor fiber optical cable. Further, a flame-retardant sheath is used to cover the Duplex Flat Cable. We offer dimensionally accurate, fire proof and uniform Duplex Flat Cable that complies with standard YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc; and meets the requirements of UL approval for OFNR and OFNP. Features

Good performance of flame-retardant
Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
Excellent geometrical dimension of the fiber
Low induced attenuation within the operating temperature range

Uses

Making connector
Data communication
Installation : riser, plenum, etc.
Making jumper, pigtail and building distribution
Places where waterproof is not strictly required

Cable Code

Type	ZCC-III	ZCC-II	ZCC-I
Cable Diameter (mm)	(6.0±0.4)x(2.8±0.2)	(4.2±0.4)x(2.0±0.2)	(3.4±0.4)x(1.6±0.2)
Cable Weight (kg/km)	15.6	10.5	7.3
TBF Diameter	900±50Μm	900±50Μm	600±50Μm

Mechanical Characteristics

Tensile Strength	Long term	100N	100N
Tensile Strength	Short term	200N	200N
Crush Resistance	Long term	200N/100mm	100N/100mm
Crush Resistance	Short term	1000N/100mm	500N/100mm
Bending Radius	Dynamic	20×H （Cable Axis）
Bending Radius	Static	10×H （Cable Axis）
