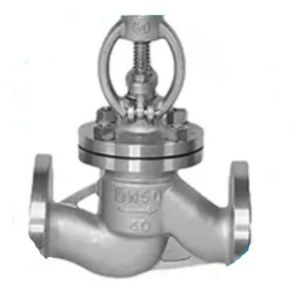

Contact SupplierWe offer high-quality Duplex Globe Valves with flanged end connections, EPDM seat material, stainless steel bonnet material, and graphite gland packing material. Available in nominal diameters ranging from DN40 to DN400 and nominal pressure ratings from PN10 to PN63. Perfect for various industrial applications. Contact us for more information on our premium valves.
| DN | L | D | C | g | T | H | W | n-Ñ„ |
| 40 | 165 | 127 | 98.5 | 73 | 15 | 214 | 138 | 4- Ñ„ 15 |
| 50 | 203 | 152 | 120.5 | 92 | 16 | 235 | 160 | 4- ф19 |
| 65 | 216 | 178 | 139.5 | 105 | 18 | 285 | 200 | 4- ф19 |
| 80 | 241 | 190 | 152.5 | 127 | 19 | 336 | 200 | 4- ф19 |
| 100 | 292 | 229 | 190.5 | 157 | 24 | 357 | 224 | 8- ф19 |
| 125 | 356 | 254 | 216 | 186 | 24 | 421 | 280 | 8- ф22 |
| 150 | 406 | 279 | 241.5 | 216 | 26 | 491 | 300 | 8- ф22 |
| 200 | 495 | 343 | 298.5 | 270 | 29 | 650 | 375 | 8- ф22 |
| 250 | 622 | 406 | 362 | 324 | 31 | 762 | 450 | 12- ф25 |
| 300 | 698 | 483 | 432 | 381 | 32 | 990 | 500 | 12- ф25 |
| 400 | 914 | 597 | 540 | 470 | 37 | 1104 | 600 | 16- ф29 |
