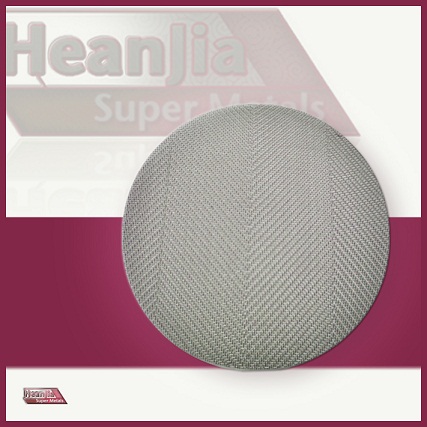

Duplex Stainless Steel 2507 Wire Mesh Screen

We offer duplex stainless steel 2507 wire mesh screen.
the duplex stainless steel 2507 wire mesh screen gives outstanding resistance to chloride ion stress corrosion cracking and several corrosion conditions. Large potential. It provides excellent resistance to pitting and crevice corrosion. Due to the high content of cr and mo, 2507 steel offers superior resistance to organic acids like formic acid, acetic acid and inorganic acid.
the duplex stainless steel 2507 wire mesh screen offers higher resistance to the chlorides corrosion than 904 alloy. It is utilized in the oil and gas processing industry, fire systems and water apparatus.
mesh specifications
mesh size 0.2meshinch to 250meshinch
thickness 0.1mm-5.0mm
aperture rate 10%-90%
chemical composition of duplex stainless steel 2507 wire mesh screen
chromium molybdenum nickel carbon nitrogen others
25% 4% 7% 0.020% 0.27% bal.
physical properties of duplex stainless steel 2507 wire mesh screen
density lbin3 0.28
modulus of elasticity psi x 106 29
coeff. Of thermal expansion 68-212ofof x10-6°f 7.2
thermal conductivity btulb°f 8.7
heat capacity btulb°f 0.12
electrical resistivity -in x 10-6 31.5
the superior blend of high tensile strength and impact strength with nominal coefficient of thermal expansion as well as high heat conductivity enables this steel for implementing in the various operations.
mechanical properties of duplex stainless steel 2507 wire mesh screen
ultimate tensile strength, ksi 116 min
0.2% offset yield strength 0.2%, ksi 80 min
0.1% offset yield strength 0.2%, ksi 91 min
elongation in 2 inches, % 15 min.
hardness rockwell c 32 max.
impact energy, ft.-lbs. 74 min
applications of duplex stainless steel 2507 wire mesh screen
1. Offshore oil and gas applications
2. Brine solutions
3. Power production house
4. Commercial scrubber system
5. Tower and piping
