Durasile AF-acid Compressed Non-asbestos Fibre Gasket Sheet

₹ 200 - ₹ 400 / 3000 Kilogram

MOQ3000 kgs
PatternPrinted
MaterialFiber, Non-Asbestos Gasket Sheet,Non-Asbestos Gasket Material
Brand NameDURASILE
Thickness0.5-1mm, 1.5-2mm, 2.5-3mm, 3.5-4mm, 4.5-5mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Bulandshahr Road Industrial Area, Ghaziabad, Uttar Pradesh

5.0/5

View Number

Member Since 3 Years
Nature of Business Manufacturer
GST No. 09AGNPG3762C1ZF

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Thickness0.5-1mm, 1.5-2mm, 2.5-3mm, 3.5-4mm, 4.5-5mm
PatternPrinted
FeatureDurability, Fine Finishing.Water Proof, High Quality, Sturdiness, Best Quality,Durable
ApplicationGasket Materials
ShapeRectangular
MaterialFiber, Non-Asbestos Gasket Sheet,Non-Asbestos Gasket Material
Brand NameDURASILE
Max. Peak Temperature400 ⁰C
Max. Peak Pressure150 bar
Packaging TypeWhite
Available Thickness0.30mm to 6.0mm
Max. Operating Temperature275 ⁰C
Number Of FlowerNon Asbestos Jointing Sheet,Non Asbestos Gasket Sheets

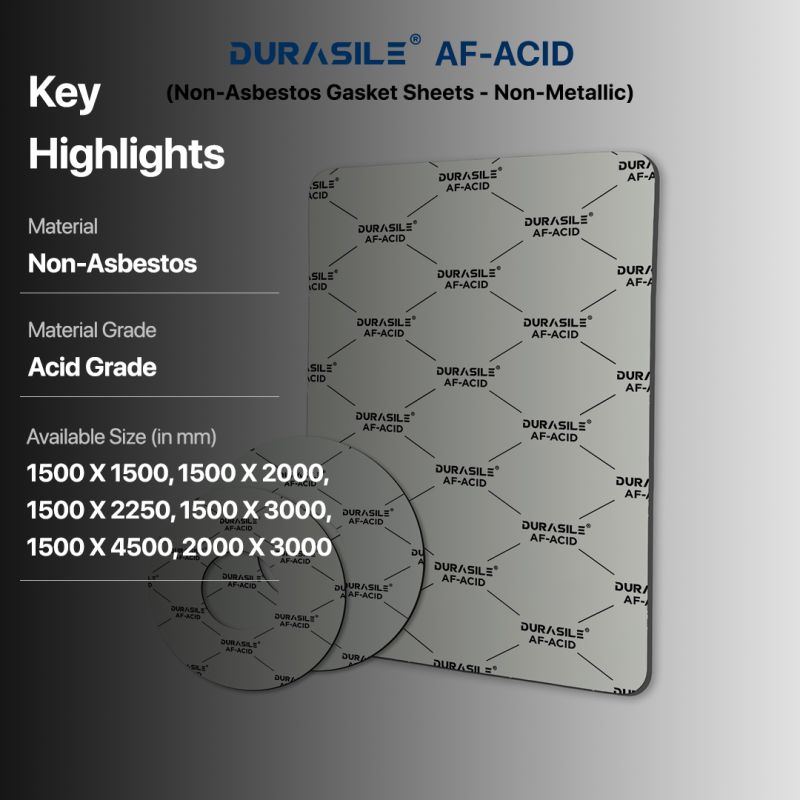

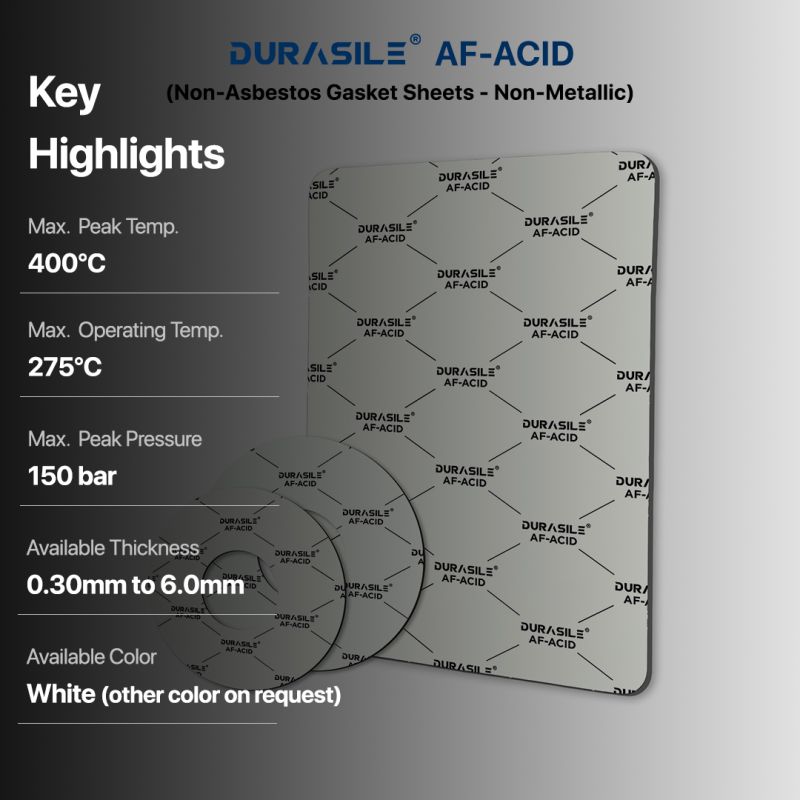

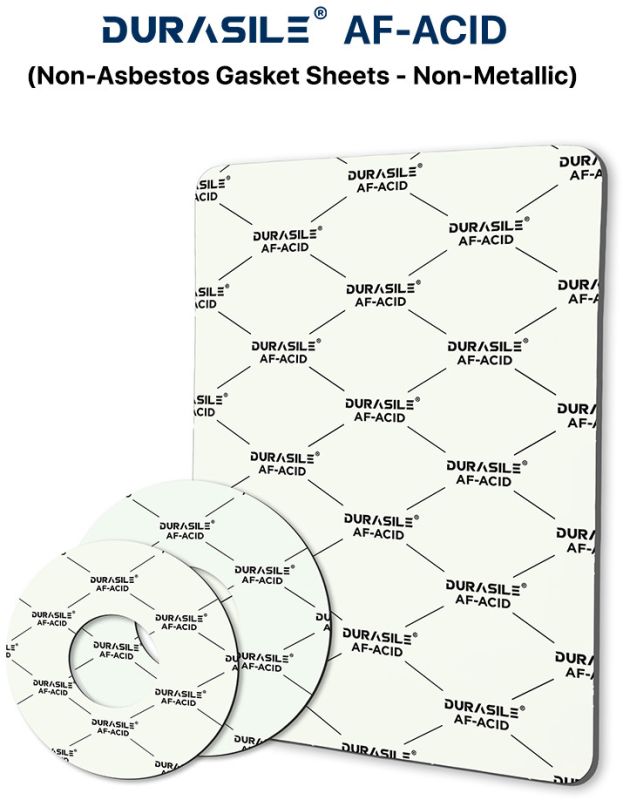

DURASILE AF-ACID (Non-Metallic)

Compressed Non-Asbestos Fibre (CNAF) Gasket Sheet

Product Overview:

DURASILE AF-ACID is a high-performance compressed non-asbestos (CNAF) gasket material specifically developed for use in chemically aggressive environments. It is widely utilized across process industries, water treatment plants, and the chemical industry for its excellent chemical resistance and sealing capabilities under medium-stress conditions.

Application Suitability:

DURASILE AF-ACID is suitable for:

Highly aggressive chemical media
Acidic and alkaline substances
Applications requiring strong chemical resistance and dimensional stability

Composition:

This gasket sheet is manufactured from a blend of mineral and aramid fibres, bonded with synthetic elastomers (CSM). It is produced using the hot calendering process under strict quality control procedures certified to ISO 9001 standards.

Compliance Standards: ASTM F104 Line Callout: F719911E19A9B3M6

Technical Details

Parameter	Specification
Maximum Peak Temperature (C)	400 C
Maximum Operating Temperature (C)	275 C
Maximum Peak Pressure (bar)	150 bar
Available Thickness (in mm)	0.30 to 6.00 (other thickness available on request)
Available Colors	White (other colors available on request)
Available Sheet Sizes (in mm)	1000 X 1000, 1000 X 1500, 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 2000, 2000 X 3000
