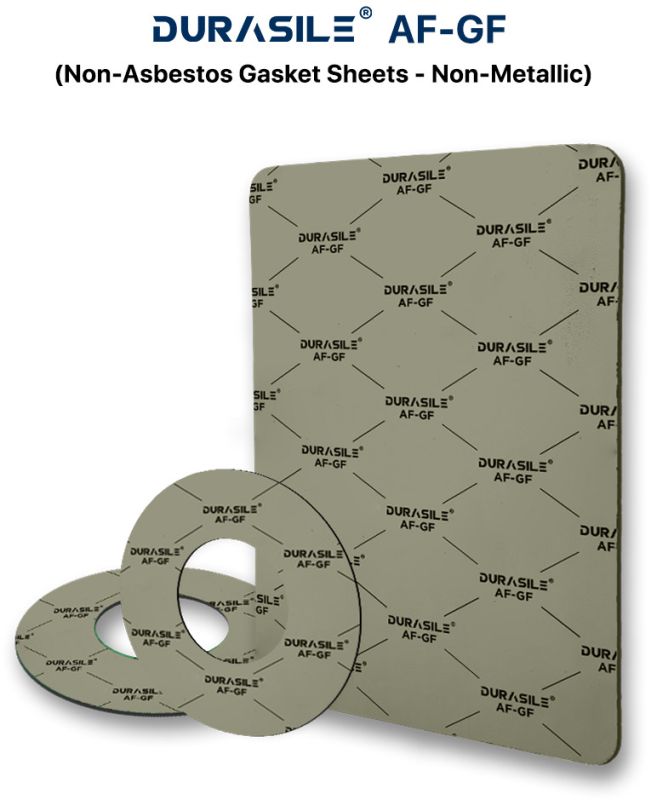

Durasile Af GF - Non Metallic (Non Asbestos Gasket Sheets)

₹ 300 - ₹ 600 / Kilogram

MOQ3000 Kilogram
MaterialFiber, Non-Asbestos Gasket Sheet,Non-Asbestos Gasket Material,Asbestos Free Gasket Sheets
Brand NameDURASILE
Pressure150 Bar
ShapeRectangular, Square
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Bulandshahr Road Industrial Area, Ghaziabad, Uttar Pradesh

5.0/5

Member Since 3 Years
Nature of Business Manufacturer
GST No. 09AGNPG3762C1ZF

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameDURASILE
Country of OriginIndia
Size1000 X 1000,1000 X 1500,1500 X 1500,1500 X 2000,1500 X 2250,1500 X 3000,1500 X 4500,2000 X 20,2000 X 2000,2000 X 3000
ApplicationGasket Materials
Pressure150 Bar
ShapeRectangular, Square
MaterialFiber, Non-Asbestos Gasket Sheet,Non-Asbestos Gasket Material,Asbestos Free Gasket Sheets
Maximum Peak Temperature (C)475 °C
Available Thickness (in mm)0.30mm to 6.00mm
Maximum Peak Pressure (bar)150 bar
Storage ConditionDURASILE AF-GF Compressed Non Asbestos Fibre Jointing Gasket Sheets
Number Of FlowerCompressed Non Asbestos Fibre Jointing Gasket Sheets
Maximum Operating Temperature (C)375 °C

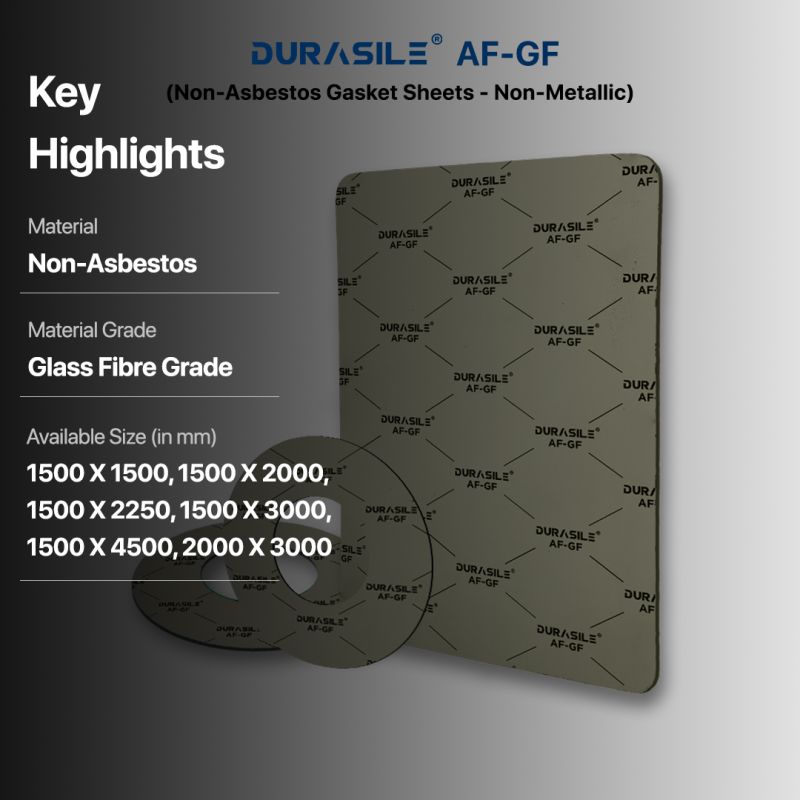

DURASILE AF GF (Non Metallic)

Compressed Non Asbestos (CNAF) Gasket Sheet - Premium Steam and Hot Water Resistant Material

Product Overview

DURASILE AF GF is a high-performance compressed non-asbestos (CNAF) gasket material, engineered for demanding applications across process industries, oil and gas, power plants, sugar mills, and water and chemical industries. This gasket sheet offers excellent resistance to steam and hot water, making it ideal for high-temperature and high-pressure environments. It provides enhanced stress relaxation and reliable sealing in a wide range of fluid and gas applications.

Key Features & Applications

Premium gasket material for industrial applications
Exceptional resistance to steam and hot water
Suitable for sealing oils, fuels, gases, freons, pipelines, radiators, boilers, and more
Used extensively in flanged joints across chemical processing, oil and gas, and power generation industries
Offers excellent stress relaxation and high sealing reliability

Composition

DURASILE AF-GF gasket sheets are manufactured using a robust combination of aramid fibres and glass fibres, which are bonded with nitrile rubber (NBR). This advanced material is produced through the hot calendering process, ensuring uniform quality and performance. The manufacturing process adheres to stringent ISO 9001 quality control standards.

Compliance Standards

BS 7531 Grade X
ASTM F104 Line Callout: F712112A9B3E12A9M4

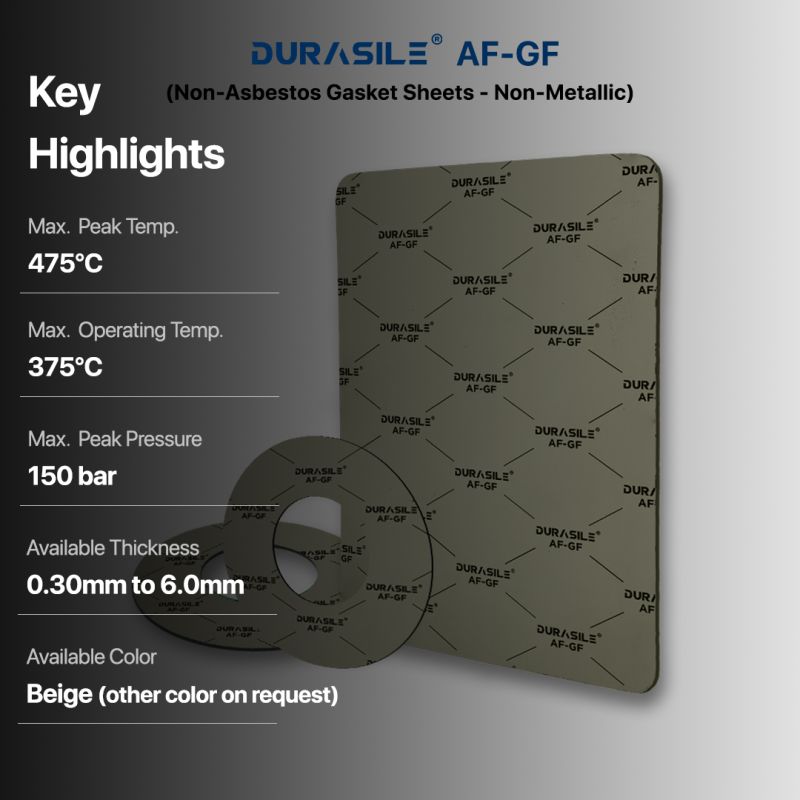

Technical Details

Parameter	Specification
Maximum Peak Temperature (C)	475 C
Maximum Operating Temperature (C)	375 C
Maximum Peak Pressure (bar)	150 bar
Available Thickness (in mm)	0.30 to 6.00 (other thickness available on request)
Available Colors	Beige (other colors available on request)
Available Sheet Sizes (in mm)	1000 X 1000, 1000 X 1500, 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 2000, 2000 X 3000
