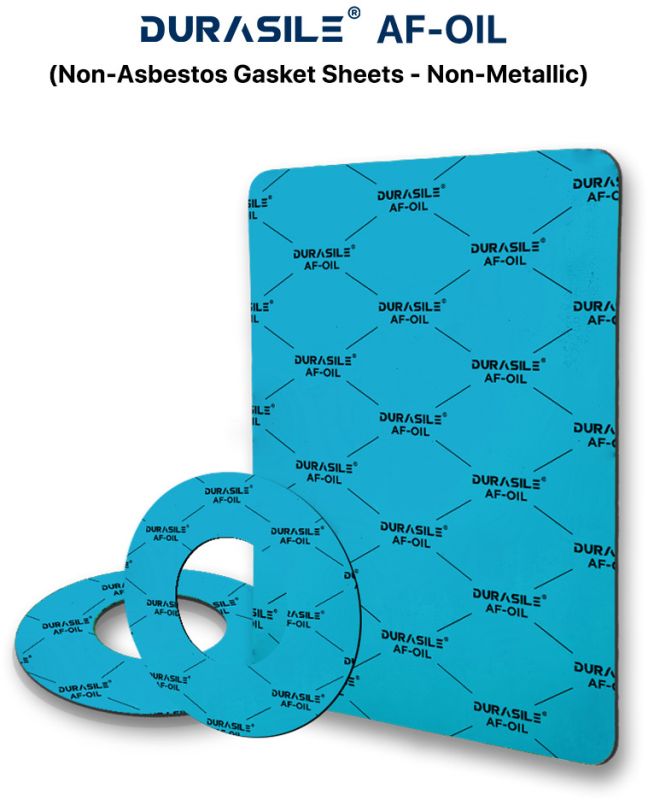

Durasile AF Oil (Non Asbestos Gasket Sheet)

₹ 250 - ₹ 600 / Meter

MOQ500 Meter
MaterialNon-Asbestos Gasket Sheet, Non-Asbestos Gasket Material
PatternPrinted
Brand NameDURASILE
Thickness0.25-1mm, 1.5-2mm, 2.5-3mm, 3.5-4mm, 4.5-6mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Bulandshahr Road Industrial Area, Ghaziabad, Uttar Pradesh

5.0/5

View Number

Member Since 3 Years
Nature of Business Manufacturer
GST No. 09AGNPG3762C1ZF

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Thickness0.25-1mm, 1.5-2mm, 2.5-3mm, 3.5-4mm, 4.5-6mm
ShapeRectangular
MaterialNon-Asbestos Gasket Sheet, Non-Asbestos Gasket Material
Brand NameDURASILE
PatternPrinted
SpecialitiesDurable, Durability,Fine Finishing.Water Proof,High Quality,Sturdiness,Best Quality
Available Thickness0.30mm to 6.0mm
Packaging TypeGreen,Blue
Max. Peak Pressure120 bar
UsageIndustrial Use,Gasket Materials
FinishingCoated
Max. Operating Temperature275 ⁰C
Max. Peak Temperature425 ⁰C
Number Of FlowerNon Asbestos Jointing Sheet, Non Asbestos Gasket Sheets
Packaging TypeStrong Export Friendly Wooden Pallets

DURASILE AF-OIL (Non-Metallic)

Compressed Non-Asbestos Fibre (CNAF) Gasket Sheet

Product Overview:

DURASILE AF-OIL is a premium-grade compressed non-asbestos (CNAF) gasket material engineered for reliable sealing performance across a wide range of industrial applications. Designed to withstand medium-stress conditions, it is extensively used in process industries, oil and gas, power plants, sugar mills, and the water and chemical sectors.

Application Suitability: The material is suitable for use with:

Oils, fuels, lubricants, alcohols
Gases and hydrocarbons
Steam and water
Cooling liquids
Most diluted acids and alkalis

Composition:

DURASILE AF-OIL is manufactured from a blend of aramid fibres and organic fibres, reinforced and bonded with high-quality nitrile rubber (NBR). The sheets are produced using the hot calendering process under stringent quality controls, compliant with ISO 9001 certified systems.

Compliance Standards:

BS 7531 Grade Y
ASTM F104 Line Callout: F712911E12A9B5M5

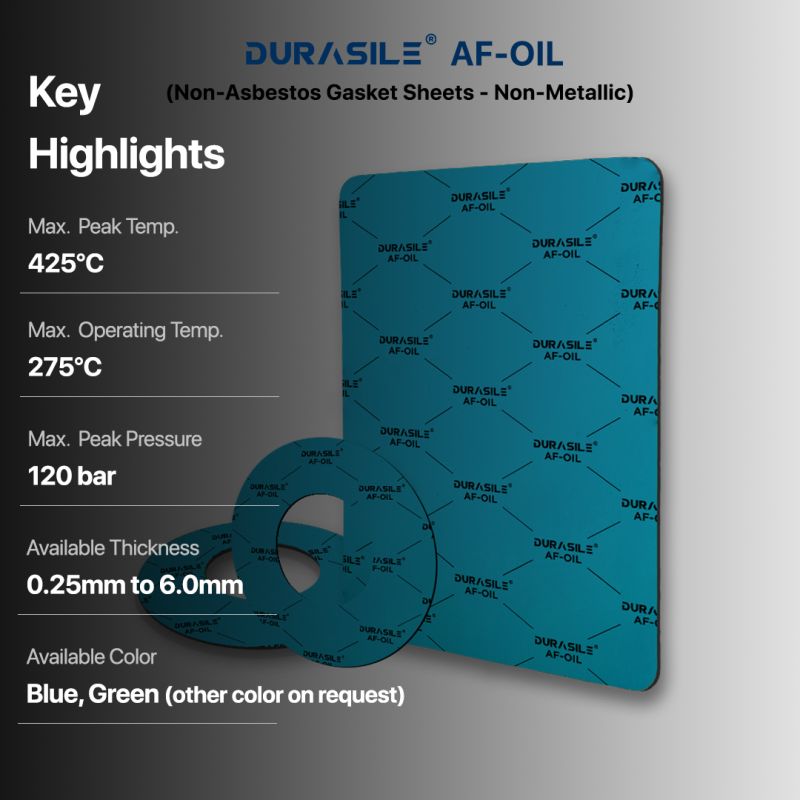

Technical Details

Parameter	Specification
Maximum Peak Temperature (C)	425 C
Maximum Operating Temperature (C)	275 C
Maximum Peak Pressure (bar)	120 bar
Available Thickness (in mm)	0.25 to 6.00 (other thickness available on request)
Available Colors	Blue, Green (other colors available on request)

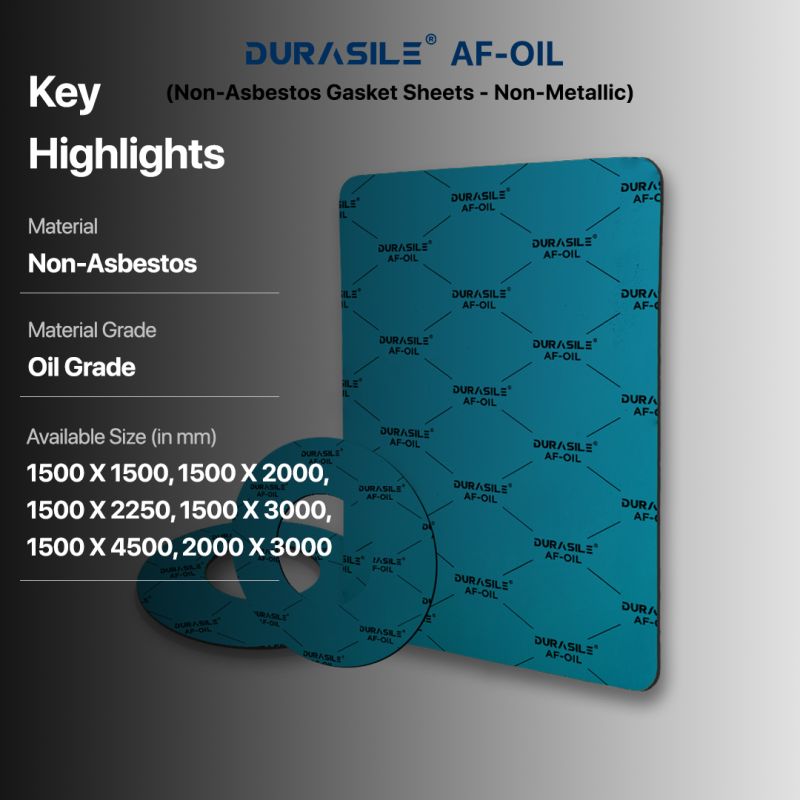

Available Sheet Sizes (in mm)	1000 X 1000, 1000 X 1500, 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 2000, 2000 X 3000
