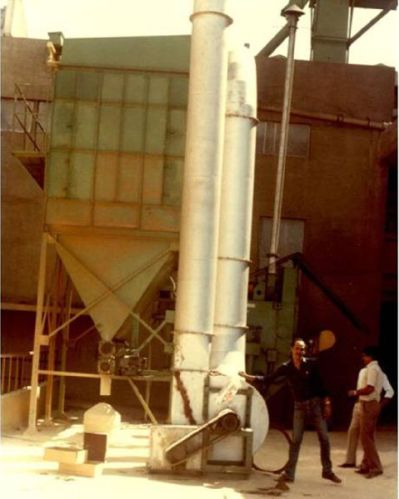

Dust collection system, Application : Dust Collecting

WHY CONTROL DUST

• DUST GENERATED DURING INDUSTRIAL PROCESS IF NOT SUITABLLY CONTROLLED CAN CAUSE
• HEALTH HAZARD TO EXPOSED WORKMEN
• UNWANTED PRODUCT CROSS-CONTAMINATION
• CLOGGING OF MACHINERY AND INCREASE IN MAINTENANCE
• LOSS OF VAULABLE PRODUCT ( when expensive products are processed)
• DIFFICULTY IN MAINTAINING GOOD MANUFACTURING PRACTICE

DUST CONTROLL EQUIPMENTS

TYPES:

• DRY COLLECTORS: CYCLONIC SEPERATORS BAGFILTERS
• WET COLLECTORS: IMPINGEMENT PLATE COLLECTOR VENTURY SCRUBBERS

BAGFILTERS

• NON-WOVEN FILTER ELEMENTS
• BAGS , CAGES & VENTURY SEPERATLY FITTED ON TUBE SHEET
• CAN HANDEL GAS TEMPERATURE UPTO 200 D.C
• FILTERATION EFFICIENCY 99.9% UPTO 5 MICRON DUST
• LOW SURFACE FILTERATION
• LESS COMPACT IN SIZE
• EXCEPT FOR HIGH TEMPERATURE APPLICATION
• PLEATED FILTER CATRIDGES
• FILTER , CAGES & VENTURY INTEGRAL FITTED AS CATRIDGES ON TUBE SHEET
• CAN HANDEL GAS TEMPERATURE UPTO 80 D.C
• FILTERATION EFFICIENCY 99.9% UPTO 1 MICRON DUST
• 100% SURFACE FILTERATION
• COMPACT IN SIZE
• FILTER MEDIA IMPORTED

NON - WOVEN NEEDLE FELT BAGFILTERS

TUBULAR BAGS

• DIAMETERS : 115mm, 125mm, 150m
• LENGTHS : 1500MM TO 3500MM
• FILTER MEDIA: POLYESTER, PP, NOMEX, RAYTON, GLASS FIBER & PTFE
• FILTER AREAS : UPTO 1200M2

POCKET BAGS

• SIZE : 0.5Mt X 1.0 & 1.5Mt .LG
• FILTER MEDIA : POLYESTER, PP NOMEX, RAYTON & PTFE
• FILTER AREAS : UPTO 1200M2

PLEATED FILTER CATRIDGES

TUBULAR BAGS

• DIAMETERS : 150mm, 225mm, 500m
• LENGTHS : 500MM TO 2000MM
• FILTER MEDIA: SPUN POLYESTER WITH, PTFE COATING
• FILTER AREAS : UPTO 200M2

POCKET BAGS

• SIZE : 0.5Mt X 0.5 & .75Mt .LG
• FILTER MEDIA: P SPUN POLYESTER WITH, PTFE COATING
• FILTER AREAS : UPTO 100M2

• Whirlwind corporation dust collection system offer numerous benefits and advantages to industries. Some of these are:

• Chemical Process
• Food and Agricultural Industry
• Metal Industry
• Mineral Products
• Pharmaceutical Industry
• Powder Industry
• Timber and Woodworking Industry
• • IMPROVES PRODUCT QUALITY
  • INCREASES PRODUCTIVITY BY PROVIDING DUST FREE ATMOSPHERE
  • LOW OPERATING COST
  • ASSIST YOU IN MEETING VARIOUS GOVERNMENT REGULATIONS
  • CAN HANDEL HIGH DUST LOADS.





  INSTALLATIONS OF NON - WOVEN NEEDLE FELT BAGFILTERS:

  DE-DUSTER FOR SAND COATING PLANT AT WHEEL & AXEL PLANT-INDIAN RAILWAYS- BANGALORE TUBULAR BAGFILTER

  • APPLICATION : VENT FROM SAND COATING PLANT
  • DUST : FINE SAND PARTICLES & RESIN
  • TEMPERATURE : 90 O C
  • AIR VOLUME : 13500 CMH
  • BAG DETAILS : 150 DIA. X 2500LG 128 NOS
  • FILTER MEDIA : 500GSM POLYESTER FELT
  • DUST LOAD : INLET 20GM / NM3: OUTLET 50 MG / NM3
  • PULSING ARRG : 8BAGS PER VALVE
  • DISCHARGE : BY LIVE BOTTOM SCREW & RAL
  • INSTALLED ON : 1984

  DE-DUSTER FOR FLY ASH SILO VENT NARMADA CEMENT -GUJRAT TUBULAR BAGS

  • APPLICATION : VENT FROM FLY ASH SILO
  • DUST : FINE COAL FLY ASH
  • TEMPERATURE : 90 O C
  • AIR VOLUME : 5000 CMH
  • BAG DETAILS : 150 DIA. X 2500LG 64 NOS
  • FILTER MEDIA : 500GSM POLYESTER FELT
  • DUST LOAD : INLET 40GM / NM3, OUTLET 50 MG / NM3
  • PULSING ARRG : 8BAGS PER VALVE
  • DISCHARGE : DOUBLE FLAP VALVE
  • INSTALLED ON : 1992

  DUST COLLECTOR FOR SHIP UNLOADER NARMADA CEMENT , LARSEN & TOUBRO LTD -GUJARAT & MS POCKET BAGS

  • APPLICATION : DUST CONTROLL
  • DUST : FINE CLINKER DUST
  • TEMPERATURE : AMBIENT O C
  • AIR VOLUME : 120000 CMH
  • POCKET SIZE : 500 X 1500LG- 800 NOS
  • FILTER MEDIA : 550GSM POLYESTER
  • DUST LOAD : INLET 15GM / NM3, OUTLET 80 MG / AM3
  • PULSING ARRG : 10 POCKETS PER VALVE
  • DISCHARGE : LIVE BOTTOM SCREW, RAL&AGGLOMERATOR
  • INSTALLED ON : NARMADA 1997, L&T 1999

  DUST COLLECTION FORM 3NOS VERTICAL MILL FOR CLINKER GRINDING ULTRATECH CEMENT LTD. -AWARPUR TUBULAR BAGFILTER

  • APPLICATION : DUST COLLECTION
  • DUST : FINE CLINKER DUST
  • TEMPERATURE : 100 O C
  • AIR VOLUME : 48000 CMH
  • BAG DETAILS : 125 DIA. X 3000LG- 600 NOS
  • FILTER MEDIA : 550GSM POLYESTER
  • DUST LOAD : INLET 5GM / NM3, OUTLET 50 MG / AM3
  • PULSING ARRG : 10BAGS PER VALVE
  • DISCHARGE : ROTARY AIR LOCK VALVES
  • INSTALLED ON : 3NOS -2005

  DUST COLLECTION FOR FOUNDRY SHAKE OUT GARIMA CASTINGS LTD-RAJASTHAN

  • APPLICATION : DUST CONTROLL
  • DUST : FINE FOUNDRY DUST
  • TEMPERATURE : AMBIENT
  • AIR VOLUME : 48000 CMH
  • BAG DETAILS : 150 DIA. X 3000LG- 250NOS
  • FILTER MEDIA : 550GSM POLYESTER
  • DUST LOAD : INLET 15GM / NM3, OUTLET 80 MG / AM3
  • PULSING ARRG : 10BAGS PER VALVE
  • DISCHARGE : 1 ROTARY AIR LOCK VALVES
  • INSTALLED ON : 2006
