Contact SupplierWe are one of the progressive Manufacturers, Exporters and Suppliers of Dust Cyclones. Owing to our state-of-the-art production resources, we offer a wide array of Dust Cyclones in sync with globally laid quality standards and norms. Our Dust Cyclones are relied on courtesy features like compact design, accurate dimensions and corrosion resistance. Buyers can purchase Dust Cyclones in bulk and expect on time delivery of consignments.
Scope Of Use

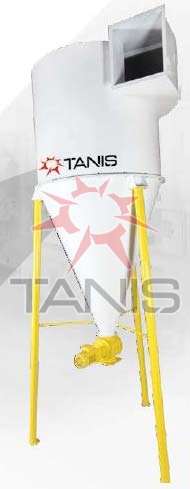

It consists of a system including cyclone, tripod, air lock, glass hopper collection pipes. The Pneumatic Cyclone is made of steel construction, and consists of a conic body at the upper part and a outlet pipe. It supplies the product to be separated from the air. At the time of this process, it is so designed that the air loss in the system is decreased and hold in minimum. The air, sucked with pneumatic fan, turns in the product mixture cyclone with a high speed and hits the cyclone wall and due to the centrifugal power, the product looses speed and flows downstairs from the conic side with the help of air lock.
Model | Dimension mm. | Technical Features | |||||||||
øA | B | C | D | E | F | øG | øH | Weights kg | Ambalaj Hacmi Gross vol. m3 | ||
Net Net | Brut Gross | ||||||||||
TMTS 820 | 820 | 920 | 1400 | 2270 | 870 | 290X370 | 410 | 160 | 170 | 242 | 2.00 |
TMTS 1000 | 1000 | 1110 | 1700 | 2750 | 1050 | 350X460 | 500 | 160 | 230 | 326 | 3.25 |
TMTS 1150 | 1150 | 1250 | 1950 | 3150 | 1200 | 360X500 | 575 | 160 | 320 | 416 | 4.52 |
TMTS 1350 | 1350 | 1450 | 2250 | 3650 | 1400 | 400X600 | 675 | 160 | 545 | 680 | 6.67 |
TMTS 1500 | 1500 | 1650 | 2500 | 4050 | 1500 | 500X700 | 700 | 160 | 715 | 860 | 8.75 |
TMTS 1650 | `1650 | 1750 | 2755 | 4455 | 1700 | 550X770 | 770 | 160 | 1050 | 1270 | 11.24 |
TMTS 1800 | 1800 | 1900 | 3010 | 4860 | 1850 | 600X840 | 840 | 160 | 1265 | 1470 | 14.11 |
