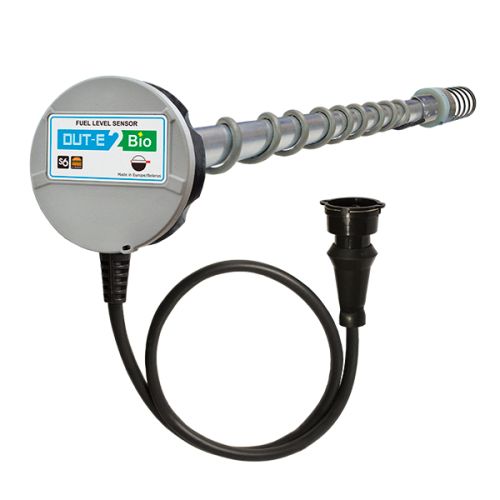

DUT-E 2Bio Fuel Level Sensor

dut-e 2bio is specially designed for fuel tanks, which are regularly filled with different fuel types. This is especially topical for vehicles, which are using biodiesel or travelling through several countries and also for cisterns used for fuel transportation.

dut-e 2bio automatically detects new fuel type in fuel tank and adjusts measurements results. This feature allows to give fleet manager accurate data on level and volume of fuel in the tank, correctly detect tank refilling and fuel draining volumes. In addition, dut-e 2bio allows indirect fuel quality evaluation.

operation principle: capacitive

measurement inaccuracy: 1%

supply voltage, v:  10-50, protection up to 100

operation temperature, °с :  –40 . +85

current consumption (dc 24/12v), ma: ≤ 25/50

probelength, mm: 700, 1000
