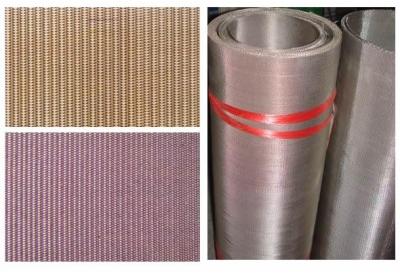

Dutch Woven Wire Cloth

The structure of dutch woven cloth has different mesh counts in weft and warp direction. Suitable match of wire dia. And mesh count can realize the filtration density that are unrealizable for square mesh. Common dutch woven wire cloth has more weft wires than warp wires, and the warp wire dia. Is usually bigger than that of the warp wires; reverse dutch woven wire cloth is vice versa. Due to its unique structure and weave pattern, dutch woven wire cloth is more used in fine filtration than normal s.s. Square mesh. Present densest dutch woven cloth can have the mesh opening size as small as 3 microns. So we also call dutch woven mesh micron-grade filter cloth.
common materials used in dutch woven wire cloth:ss304,ss316,ss316l,ss430
applications: precision pressure filters, fuel filters, aerospace, petroleum, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and so on.
common specifications of plain weave dutch woven wire cloth:
dutch woven wire mesh �plain weave
gauge meshinch wire diametermm filtering precision (î¼m)
40 10x64 0.55x0.42 260
50 12x75 0.45x0.35 220
80 24x110 0.35x0.25 160
100 25x140 0.28x0.20 100
120 30x150 0.25x0.18 80
140 35x180 0.20x0.16 70
160 40x200 0.18x0.13 60
180 45x220 0.16x0.12 56
200 50x250 0.15x0.11 50
240 60x300 0.14x0.09 45
260 65x320 0.13x0.08 36
280 70x400 0.125x0.07 34
300 80x700 0.11x0.039 32.
