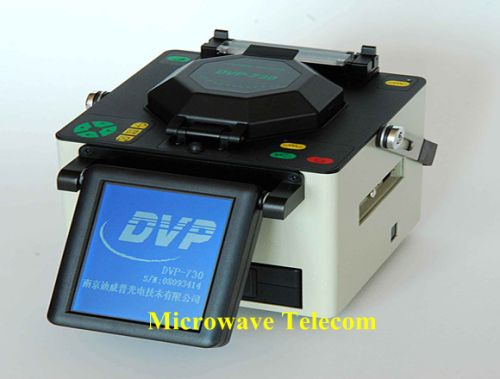

Dvp Fusion Splicer

We are offering dvp fusion splicer.
Features:-
color lcd monitor & 256 magnification compact & light weight reversible monitor with control panel on each side max. Wind velocity of 15m/s. 8 sec. Splice time, 40 sec. Tube-heat time simultaneous x and y views large capacity internal battery system test ensures the best working condition user programmable auto check fiber end face auto calibrate parameters store 8000 groups of splice results multiple language options
specifications
model dvp-730
applicable fibers sm, mm, ds, nz-ds, edf
cladding diameter 100 to 150um
coating diameter 100 to 1000um
fiber cleaved length 8-22mm (standard)
splicing mode auto & manual
average splice loss 0.02db(sm),0.01db(mm),0.04db(ds),0.04db(nzds)
return loss  ≥ 60db
environment conditions -25-+50℃(operation temperature),0-95%rh(humidity),0-5000m (altitude)
storage environment -40-+80℃(temperature), 0-95％rh (humidity)
protection sleeve length 20mm, 40mm, 60mm
tension test 2.0n (standard)
language english, chinese, korea, russian, spanish etc.
Interface rs232 interface & video output
power supply ac adaptor: 85-260v input voltage
internal battery: 12v voltage, 10ah, up to 200 times of continuous splices and heatsdc adaptor: 12v voltage, optional multipurpose external battery
dimensions 170(w)×140(h)×170(d)mm
weight 3.3kg./
