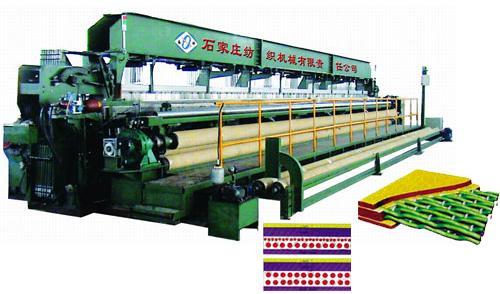

Dw200-1600 Heavy Duty Woven Press Felt Weaving Loom

A kind of superwide heavy loom developed for weaving papermaking felt on the basis of our national conditions is especially suitable for weaving of high-strength cropping papermaking felt, in particular to annular bottom fabric.
Technical parameters:
　　1、applicable polyester monofilament: 0.10～0.5mm or 0.2mmx6 strands
　　2、weft density range: 50～360 weft 10cm.warp density range: 60～180 weft 10cm.
　　3、denting breadth∶16m。
　　4、economic speed∶25 revmin
　　5、total motor power∶40.75kw。
　　6、machine weight∶about 80t。
　　7、overall dimensions∶width23520×depth6485×height2600(mm)。
machine structure：
　　1、rack: main wall panels in cast iron box type structure to combine the whole machine, in a gap 1780mm
　　　　between two sets.
　　2、main driving: dual-motor double-side coaxial drive, 11kw for each motor; dual pneumatic clutch,
　　　　elliptical gear transmission for main transmission case.
　　3、weft insertion: hydraulic shooting-in, 2*2 shuttle box change or weft section mechanism at two sides.
　　4、shedding: large blade type side pull dobby at two sides, 16-pcs heald frame.
　　5、beating-up: multi-section assembled crankshaft four-bar linkage for beating-up at variable speed, a set
　　　　of cradle mechanism outside.
　　6、take-up: three-roller active take-up under electronic control, with upper roll and lower roller driven by
　　　　servomotor.
　　7、temple mechanism: ring temple plus side weft control device, ring weaving temple plus side weft
　　　　control device.
