Mini Photohelic Differential Pressure Switch Gauge, Color : Black

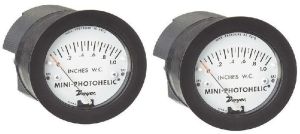

Mini Photohelic Differential Pressure Switch Gauge

The Series MP Mini-Photohelic® Differential Pressure Switch/Gage combines the time proven Minihelic® II differential pressure gage with two SPDT switching set points. The Mini-Photohelic® switch/gage is designed to measure and control positive, negative, or differential pressures consisting of non-combustible and non-corrosive gases. Gage reading is independent of switch operation. Switching status is visible by LED indicators located on the front and rear of the gage. Set points are adjusted with push buttons on the back of the unit.

Features:

Gage reading unaffected by switch operation and will continue to read pressure even during power loss

Visible switch status LED provides indication of set point switching state

Compact design but with the power of larger devices can meet the same application specifications

Applications:

• Fume hoods
• Dust collection
• Pneumatic conveying
• Clean room

Options:

• For optional 1/8" male NPT connections, add suffix -NPT to model numbers.
• Example: MP-000-NPT. No extra charge. Allow additional lead time.

Specification:

• Service : Air and non-combustible, compatible gases.
• Accuracy : ±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position.
• Process Connections : Barbed for 3/16" ID tubing (STD); 1/8" male NPT (optional).
• Electrical Connections : Screw type terminal block. Accepts 22-12 AWG wire.
• Mounting Orientation : Gage face in vertical position.
• Set Point Adjustment : Push buttons.
• Standard Accessories : 2) mounting screws, (1) .050" hex allen wrench.

Other Details:

ModelDescription

• MP-000Differential pressure switch/gage, range 0-0.5" water.
• MP-001Differential pressure switch/gage, range 0-1.0" water.
• MP-002Differential pressure switch/gage, range 0-2.0" water.
• MP-003Differential pressure switch/gage, range 0-3.0" water.
• MP-005Differential pressure switch/gage, range 0-5.0" water.
• MP-010Differential pressure switch/gage, range 0-10" water.
• MP-020Differential pressure switch/gage, range 0-20" water.
