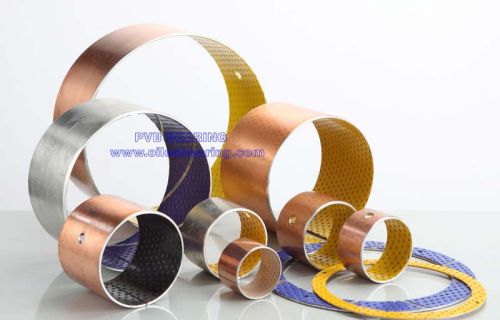

Dx Bearing

We are offering dx bearing.
Dx bushing is a type of boundary lurbicating bearing. This type of bushing is also called pom based bearing.
specifications of dx bushing:
1. Steel backing, sintered porous bronze, pom layer
2. Low wear, low friction
3. Corrosion resistance
dx bush introduce:
1, steel backing, porous bronze sintere, pom layer, copper tin plating
2, operate with marginal lubrication.
3, dx bearing is applied for grease or oil lubricated applications.
4, standard parts contain grease indents in the sliding layer (plain sliding layer also available on request).
5, the optimum performance is under relatively high loads and low speeds.
6, it is applied to machine slides, hydraulic cylinders, hydraulic motors, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.
tech data of dx bushes
static load 250nmm2
dynamic load 120nmm2
max speed 2.5ms
friction coefficient 0.05~0.25
pv limit (dry) 3.0nmm2 ms
pv limit (oil) 22nmm2 ms
temperature range -40oc ~+120oc
availiability:
dx cylindrical bushing, dx washer, dx strip
standard size:
0606dx, 0808dx, 1010dx, 1210dx, 1415dx, 1515dx, 1615dx, 1815dx, 2020dx, 2220dx, 2525dx, 2825dx, 3030dx, 3530dx, 3840dx, 4030dx, 4040dx, 4530dx, 5040dx, 5550dx, 6050dx, 6550dx, 7060dx, 7560dx, 8050dx, 8560dx, 9060dx, 9560dx
contact us today for dx bushing requirement.
