Dyeing Machines

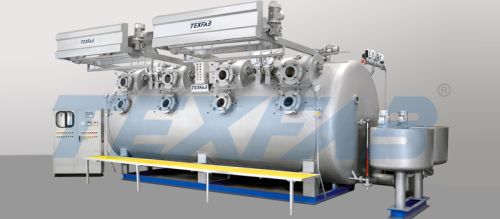

‘TEXFAB’ Soft to High Flow Fabric Dyeing Machine / Scouring Machine is laid out for the dyeing of light and heavy knitted fabric of cotton polyester and its blends and also suitable for scouring of light cotton woven fabric.
Soft Flow Dyeing Machine offers new kind of technical advantage with regards to process times, total energy consumption and fabric appearance.
Liquor ratio starts with 1:5 for polyester and 1:6 for cotton. Soft Nozzle and penetration pipe have been especially conceived for mild surface treatment of the material to be dyed.
The special full-flooded nozzle can be use from 40 mm to 200 mm diameter.
Rapid heating and cooling, over flow rinse and pump to drain.
Power clean, highly efficient spray system for boil out for machine cleaning
Excellent results are achieved in very short process to complete one turn, as one basket holding capacity is 150kg of fabric.
Lifter reel driven by frequency inverter controlled motor, for fabric speed upto 250 Mtrs /Min. subject to quality of fabric.
Heavy duty stainless steel centrifugal pump for optional dye liquor circulation. Thanks to turbo pump which consumes less power and high discharge of liquor.
Pressure vessel and all wet parts of machine are fabricated from stainless steel AISI 316 / 316L highly corrosion resistance.
All flanges, plaiter, take off roller is made out of stainless steel 304.
Bigger capacity colour Kitchen tank is available with stirrer & valves.
All safety devices required for a pressure vessel are incorporated with the machine.
Magnetic level indicator with duly calibrated in terms of liter.
Outer finish Shot Blasted.

• Feed pump to colour Kitchen Tank.
• Seam Detector.
• Fully automatic device with PLC and Pneumatic Operated
• Control Values
