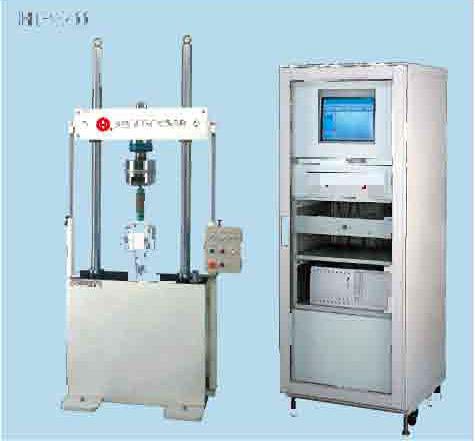

| Model | HT-9711-5 | HT-9711-5 |
| Power Source | -- | (Electro-Hydraulic Servo Control system) |
| Force Capacity | (kg) | 500 |
| (Kn) | 5 | |
| Max. Stroke (mm) | (Static) (Dynamic) | s+50 |
| Control Mode | -- | (force, displacement control) |
| Static force Sensor Capacity | -- | x120%x100%x50%, x20%, x10% |
| -- | -- | (Auto Gain Selection) |
| Static force sensing error | -- | <+1% (Calibration error) |
| Style | -- | T type |
| Operating width (mm) | -- | 400 |
| Operating height(mm) | -- | 250~900 |
| Dimension (cm) | 120 (W) x 65 (D) x 220 (H) |
| Hydraulic Power type | 555QR-10 | QR-20 | QR-40 | QR-60 | QR-80 | |
| Minimum flow rate (1/min) | 10 | 10 | 40 | 60 | 80 | |
| Servovalve rated | 15 | 15 | 45 | 80 | 120 | |
| Displacement Sensor | 1 L/1L(Option) | 5L / 5L (Option) | ||||
| Frequency range | -- | (LVDT built-in-Actuator) ; 0.05~100 Hz | ||||
