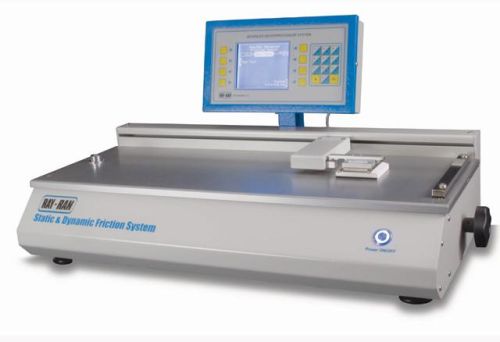

Dynamic Friction Tester

Listing ID #4157814

Get Latest Price

Supply Type Manufacturer, Supplier

Preferred Buyer From : All over the world

View More Details

Product Details

The Advanced Static and Dynamic Friction Tester brings together accurate load cell measurement with advanced microprocessor technology to give the most accurate, user friendly Friction Tester system to be designed by Ray-Ran. Frictional properties of plastic film and other materials are accurately calculated with specified test conditions selected such as test sled weight, test velocity and temperature making this apparatus ideal for all types of flexible packaging, foils, paper, board, rubber, linoleum, textiles and leather.
Accurate and repeatable test results for Static and Dynamic Friction co-efficient values with normal separating loads of up to 1 kg are easily determined for any combination of materials using a standard test sled or specific peel attachment.
To calculate the static friction the apparatus records the peak friction value at the precise moment that movement occurs after which, the dynamic friction is immediately observed. To measure this peak friction value, the advanced microprocessor continually monitors the output signals of the load cell. Load cell readings are taken beyond the peak load in order to confirm that the slope of the load curve is reducing. When the static frictional value has been determined by the microprocessor the dynamic friction is measured twenty times during the selected travel distance. The result given is the average of these twenty readings. However, by displaying the results graphically on a computer, each of the twenty readings can be inspected to examine any variation in the test results over the selected travel distance.
The large on board liquid crystal display (LCD) provides simple on screen instruction and using the alpha/numeric membrane keypad test parameters such as user names, material reference numbers and batch numbers are entered and stored in operator lists for future recall and results presentation. Testing parameters such as test velocity, sled weight and settling time are also entered to give the required testing conditions. If Temperature is important to your testing requirement then the Static and Dynamic Friction Tester can be supplied with an optional heated bed. After each test has been conducted the results are displayed on the LCD giving the static and dynamic co-efficient as well as the test load result in grams. Batch statistics are automatically updated after each test and results are shown in graphical and tabular format for analysis when downloaded to the supplied PC software.
For quality control purposes the Static and Dynamic Friction Tester can be set with High and Low limits which are clearly defined when test results are downloaded showing the user instantly if the material is a pass or fail.
The apparatus is supplied as standard with Ray-Ran’s Techni-Test Windows based PC software for connection to the apparatus via an RS232 or Ethernet connection. Test results can be printed directly from the Techn-Test software or can be saved and exported as .CSV files which can be opened with Microsoft Excel in tabular form which can be manipulated to your specific requirements such as preparing a graphical presentation or copying the results to a Word document for a report presentation if required. If the apparatus is connected to the PC via the Ethernet connector over a LAN network then the RS232 can be used for connection to an optional thermal printer for direct printout by the operator.

Testing Features

Operator list
Material reference list
Batch ref with data input
Selectable test type
Variable sled weight option
Variable sled velocity option
Variable test travel distance
Variable sample settling time
User defined High and low limits
Load cell pre-load indicator
Temperature selector (heated bed option)

Technical Specification

Test travel distance up to 350mm
Advanced dedicated microprocessor control,
Touch membrane keypad
Easy to read liquid crystal display,
Sequence logic menu auto prompt selection
RS232 interface connector
Ethernet Interface connector for LAN Networking
Tabular and graphical statistical analysis
Temperature display
Variable speed sled velocity up to 1800 mm/minute,
1 kg load cell
Sleds to ASTM or ISO test standard supplied
180 peel attachment
Sample cut out template
Calibration kit included
Available in either 220-240v 50hz or 110v 60hz
Fully traceable certificate of calibration,
Product user manual,
CE mark of conformity

Optional Ancillaries

Heated bed option
Freezer bed option
Larger load cells
Sleds to customer’s requirements
Thermal Printer
