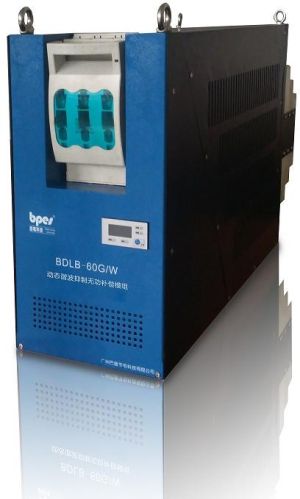

Dynamic Harmonic Suppression Reactive Power Compensation Module

We offer dynamic harmonic suppression reactive power compensation module.
This item is specially designed for the low power factor and harmonic pollution problem of 0.4kv low-voltage power distribution. It will increase power factor, suppress harmonic, reduce line loss, improve electricity quality and other functions. With complete protection measures, it can work safely and reliably.
The module is a integrated electricity device with sub components including capacitor, reactor,synchronous switch and protective unit. Etc, it has relative independent function.
application: bdtl dynamic filtering compensation module widely apply to communication industry, oil, mine, machining, metallurgy and other much loaded, with harmonic serious pollution, as well as the situations which require high electric quality and frequently changed load.
rated voltage 380v 220v
rated current 36-72 18-36
rated compensation content 30-60kvar 15*3-1­­­­ 10*3-1
rated frequency 5060hz
response time ≤10ms
switchgear internal time ≤100ms
scr reverse pressure ≥1600v
altitude ≤2500m
insulation class (under normal atmospheric pressure)≥10mω
ambient temperature -25ºc~+55ºc
relative humidity 40ºc(at 40ºc)20%~90%
receiving sensitivity -121dbm
control mode
emission frequency:433mhz( wireless)
hfaat(,) automatic networking mode -hfaat(, automatic identification and distribution from host and sub address )
