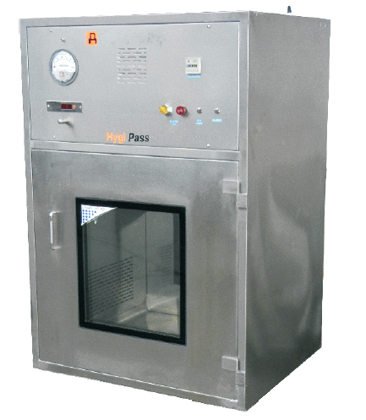

Dynamic Pass Box

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Material Of Construction — Grade SS 304Q /SS 31 6ISS 316L. Installed at the entrance of clean rooms to minimize the amount of particulate contamination entenng the clean room....

View More Details

Send Enquiry

Company Information

Allegro Pharmachem Equipments

Dahisar, Mumbai, Maharashtra

View Number

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Material Of Construction — Grade SS 304Q /SS 31 6ISS 316L.

Installed at the entrance of clean rooms to minimize the amount of particulate contamination entenng the clean room by reducing the operator traffic.

Equipped with high efficient, balanced and low noise blowers and Magnehelic Gauge (1 No.)to monitor the air flow measurement.

Fitted with high efficient Pre-Filter & HEPA Filter in a fully contained SS enclosure.

Double sandwiched doors with acrylic view panel with sturdy hinges and ergonomic handles.

Electromagnetic Interlocking to prevent the door opening simultaneously.

Features & Benefits

	Designed and manufactured as per cGMP norms.
	Double skinned body with rigid & rust proof construction of SS 304Q.
	Single Control Panel access for Door Open Alarm/Buzzer, hour meter.
	Acrylic view panel for clear visibility of the material to be transferred through the hatch.
	Door Release Switch on either side.
	Internal coving for easy cleaning.
	Easy to install and adaptable to existing facility.
	DOP Test Port & Atmosphere Port optional.
	Optional: Floor Mounted or Wall Mounted Designs.

Air cleanliness	ISO Class 5 (ISO 14644-1:1999 (E)
Air Velocities	045 ± 0.05 mps
Air Flow	Vertical - Recirculatory
Noise Level	Less than 67 dB
Vibration Level	Minimum
Power Supply	230V AC 1-Ø 50HZ
