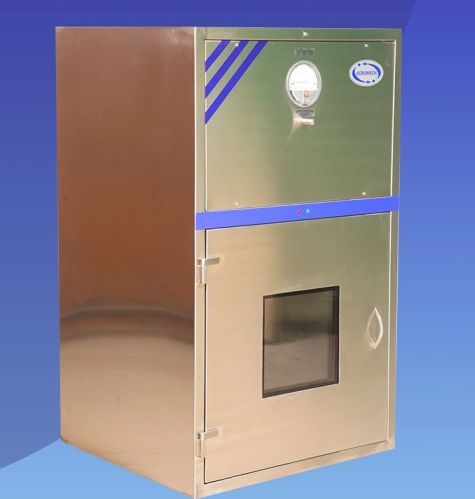

Aeromech Polished Dynamic Pass Box, Certification : Iso Certified

₹ 72,000 - ₹ 1.08 Lakh / piece

MaterialStainless Steel
FinishingPolished
GradeH14,G4
Brand NameAeromech
Supply TypeManufacturer, Supplier
Preferred Buyer Location India only

Company Information

4.5/5

Member Since 17 Years
Nature of Business Manufacturer
GST No. 33AADCA8083H1ZP

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameAeromech
MaterialStainless Steel
FinishingPolished
CertificationISO Certified
GradeH14,G4
Number Of FlowerDynamic Pass Box
Country of OriginIndia
Noise Level65 decibel on “A” scale ± 5
View Panel5mm thick Clear UV Stabilized Polycarbonate Sheet
Pre Filter MediaNon woven - synthetic polyester
Cleanliness LevelISO Class 5 as per ISO 14644-1
Material of ConstructionMade of 18swg IS 304 grade stainless steel sheet with satin finish or Galvanised Iron steel powder coated
InterlockingElecto Magnet Interlocking with sensor
MediaUltra clean glass fiber paper – imported
Retention0.3 Micron & Above
UV LampPhilips Make UV Lamp 15 watts , 450 mm Length UV operation from both entry & exit Side
Efficiency90% down to 5 micron
Efficiency99.99% down to 0.3 micron
False LockIndication by LED Display
Door TypeSingle Swing Type, with SS Hinges Double Skin Panel Door
HEPA FilterMini Pleat HEPA filter
Down Flow Velocity90 FPM ± 10 FPM or 0.45 m/s ± 0.05 m/s
Light Intensity>800 Lux at measured at work surface level
VibrationLess than 2.3 µm
Work Plat formMade of IS 304 Grade Stainless steel with satin Finish or Galvanised Iron steel powder coated
Motor BlowerDIDW type blower system, which consists of dynamically & statically balance aluminum centrifugal impeller driven by an single phase, 1440-RPM , enclosed in an Stainless Steel casing suitably suspended
Differntial Pressure0-25 mm Magnetic Gauge
Light Intensityminimum 300 Lux Inside the Chamber
CasingAluminium Anodised Frame
Direction of FlowVertical
Retention5 to 10 micron
Air Balancing100% Recirculation

Passbox provide critical environment material for easy access or passage of materials the between clean room and outer dust areas. Essential for maximum protection against outer contamination when objects are passed into or out of the clean room Available in Re-Circulation Type and Non- recirculation type.

Features

HEPA Filter Integration : High-efficiency filters remove 99.97% of particles, maintaining a contaminant-free environment.
Blower Unit : Provides consistent laminar airflow, ensuring sterile conditions during material transfer.
Positive Pressure Creation : Prevents outside contaminants from entering the pass box, protecting cleanroom integrity.
Automatic Operation : Blower activates when doors close, simplifying operation and enhancing efficiency.
Dual-Door Interlock System : Ensures only one door can be opened at a time, preventing cross-contamination.

Specification

MOC	S.S. 304 / S.S. 316 / CRCA Powder Coated.
Pre Filter	Aeromech make Pre Filter Of EU 6 Grade.
Efficiency	95% Down To 5 Microns.
Final Supply Filter	Minipleat HEPA Filter, EU 13 Grade.
Efficiency	99.99% Down To 0.3 Microns.
Blower Motor	Dynamically Balanced with Suitable Rating & Size.
Grills	S.S. 304 Perforated Grill for Pre-filter.
Doors	Sandwitched Door with double sided View Panel, Handles & Proper Gasketing.
Instruments
Pressure Gauge	Magnehelic Differential Pressure Gauge of make: Dwyer, USA.
Lights	CFL Light Through Clear Acrylic to Get Maximum Illumination / Hour Meter with UV Light.
Door Interlocking	Electro Magnetic Door Interlocking.
Performance
Air Cleanliness	Class ISO 5 (as Per ISO 14644-1).
Air Velocity	0.45 + 0.1m/sec.
Noise Level	Less Than 70 db.
Vibration Level	Minimum.
