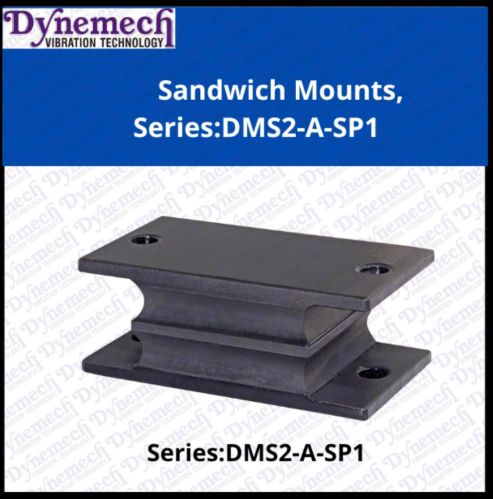

Dynemech Anti Vibration Sandwich Mount, Series DMS2-A-SP1

Dynemech Sandwich Mounts Series DMS comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. These mounts have large supporting surface area and are slim. These mounts can also be stacked to achieve lower natural frequencies.

Size:110x60x43mm                                                 Load Capacity:140 Kg/pc                                      D(mm):65                                                          CC(mm):89                                                   d(mm):12                                                     Natural Frequency:6.5

Weight Of 04 Nos ( Kg.):4 Kgs                     Box Dimension:13"X8"X7"                                   Number Of Box-01

Material: Rubber+Cast Iron

Colour: Black                                                                                        Price INR:170

Note- GST and Freight Charges are not included.
