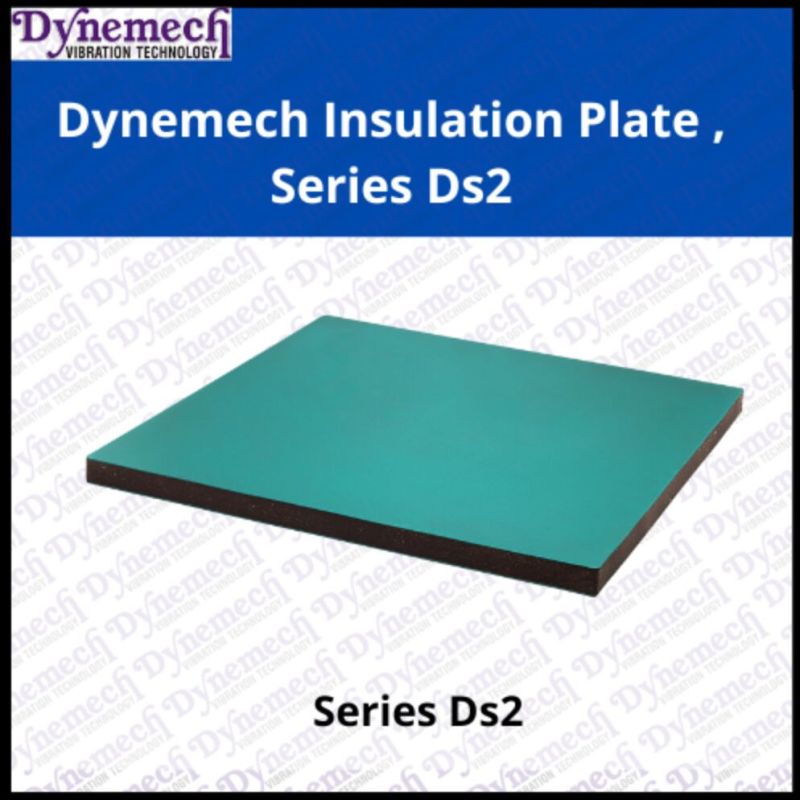

Dynemech Vibration Damping Pad, Anti Vibration Pad, Series DS2

₹ 8,580 / piece

MOQ4 piece
MaterialRubber
Brand NameDynemech
Thickness25mm
Size500x500x25mm
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 21 Years
Nature of Business Manufacturer
GST No. 06AABCD4754E1ZX

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameDynemech
Size500x500x25mm
Thickness25mm
Country of OriginIndia
MaterialRubber
Material AvailableNitrile Rubber, Cork, Synthetic Fibre
Load Capacity (Kg/Sq Cm)02-08
Max Withstanding Temperature-20 To +70
Shore A Hardness85-90
Natural Frequency (Hz)08-35
SeriesDS2
Number Of FlowerAnti Vibration Pad,Vibration Damping Pad
Warranty1

Dynemech offers ANTI VIBRATION SHEETS made from high grade synthetic composite material. These sheets have different load capacities and are available in different natural frequencies to suit various industrial applications. These are resistant to water, oils, lubricating oils, fuels etc. used in the shop floor. Each sheet has defined stress value and can be placed directly under the machine as per the weight of the machine and no. of mounting positions. These plates will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates. The available thicknesses are 2mm, 8mm, 15mm, 20mm, 25mm and 65mm.

High Vibration Insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high speed rotating machines on upper floors.

Note- GST and Freight Charges are not included.
