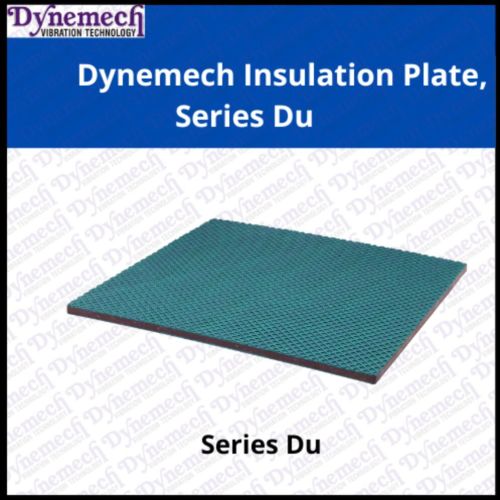

Dynemech Vibration Insulation Plate, Anti Vibration Pad , Series DU

₹ 7,920 / Piece

MOQ4 Piece
MaterialRubber
Thickness15mm
ApplicationIndustrial
FeatureBest Quality, Easy To Use, Fine Finish, Good Strength
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 21 Years
Nature of Business Manufacturer
GST No. 06AABCD4754E1ZX

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Thickness15mm
MaterialRubber
FeatureBest Quality, Easy To Use, Fine Finish, Good Strength
ApplicationIndustrial
Size500x500x15mm
Load (Kg/ Sq Cm)03-09Kg/ Sq Cm
SeriesDU
Coeff. Of Friction0.9
Max Withstanding Temperature-20 To +70
Natural Frequency (Hz)18-35 Hz
Shore A Hardness90-92
ConditionNew
Material AvailableNitrile Rubber, Cork, Synthetic Fibre
Working Temp Range DegreeC-20 To +70
Warranty1

Dynemech offers ANTI VIBRATION SHEETS made from high grade synthetic composite material. These sheets have different load capacities and are available in different natural frequencies to suit various industrial applications. These are resistant to water, oils, lubricating oils, fuels etc. used in the shop floor. Each sheet has defined stress value and can be placed directly under the machine as per the weight of the machine and no. of mounting positions. These plates will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates. The available thicknesses are 2mm, 8mm, 15mm, 20mm, 25mm and 65mm.

Tool room machine, plastic injection moulding machines, pressure die casting machines, printing and textile machine (For Machine

having high axial forces).

Note- GST and Freight Charges are not included.
