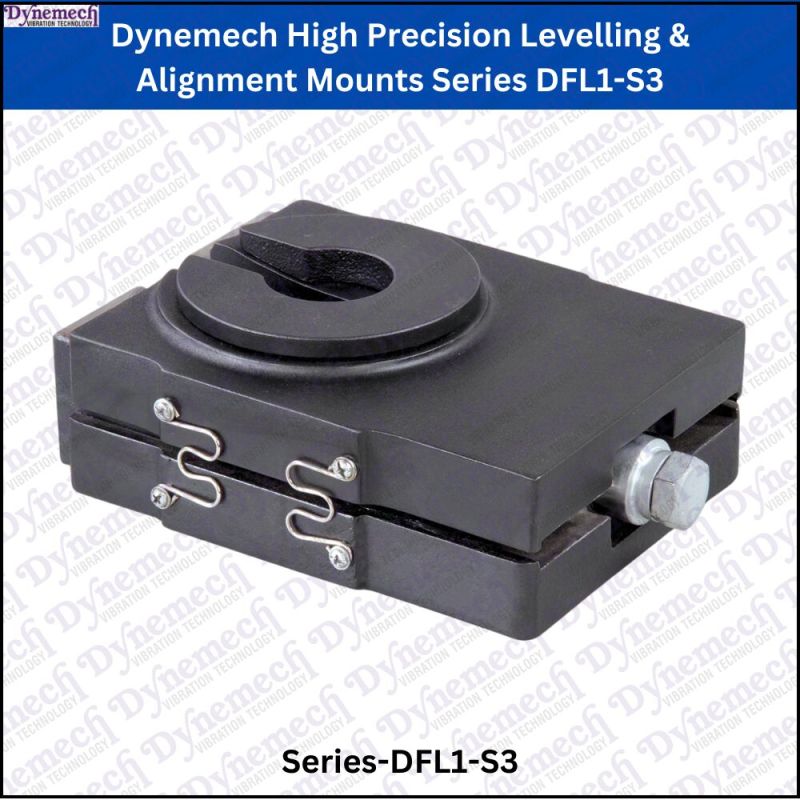

Dynemech Machine Foundation Leveling Technology, Series DFL1-S3

Dynemech High Precision Levelling & Alignment Mounts Series DFL The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.

Length:188(mm)

Width:140(mm)

 Height:68.5(mm)

Load Capacity: 12200 Kg

Natural Frequency (Hz): N/A

Max. Torque value (N.m): 603

  Adjustment Range(mm): 6

Coeff. of Friction: N/A

 Production Capacity: 100-150 set per month

 Surface Finishing: Painted

Working Temp Range : N/A

4 Nos Weight ( Kg.): 45 kg

Material: Cast Iron

Colour: Green/Dark Grey

4 Nos of Box Size: 13"x8"x7

4 Nos of Boxes: 2

Delivery Time: 10-12 Days

Note- GST and Freight Charges are not included.
