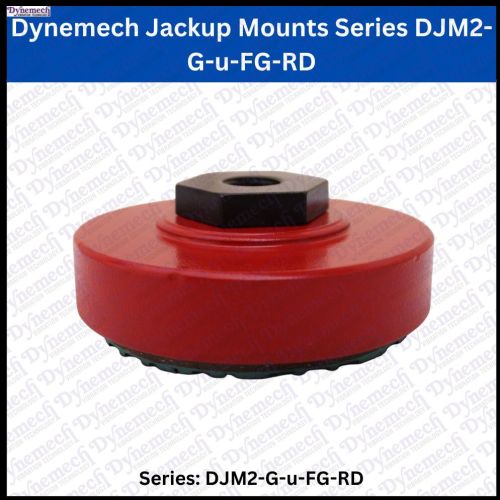

Dynemech Machinery Mounts with Levelling Sockets Series DJM-2

Dynemech Jackup mounts DJM-2 provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation. Dia D(mm):- 90mm To 160mm                                       Height H(mm):-49mm To 49mm                                    G(mm): M20x2.5                                                          Thread Length:38mm                                                        To M20x2.5mm                                                         Thread Length:38mm                                                   HEX SW(mm): 46(mm) To 62(mm)                              Load Capacity:850Kg/pc To 2500Kg/pc                    Levelling Adjustment(mm):18 mm To 18 mm                      Natural Frequency Range Hz: 18(Hz) To 18(Hz)                Coeff. of Friction: 0.9 To 0.9                                           Weight ( Kg.):1.5 Kgs To 5 Kgs                                  Working Temp Range: -16 to 90

Material :  Cast Iron, Rubber

Colour: Red Price-2270

Note- GST and Freight Charges are not included.
