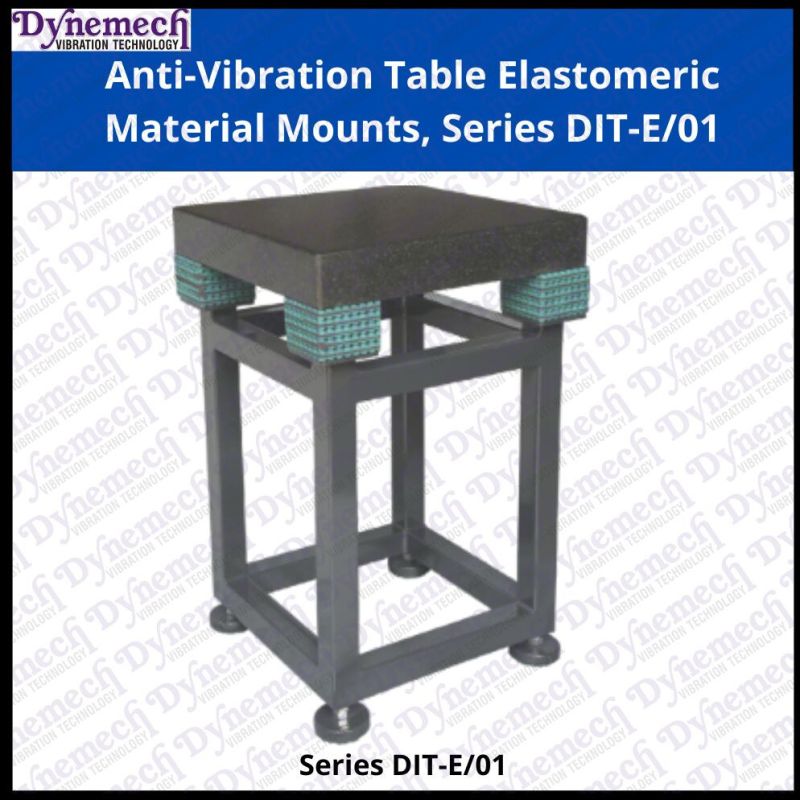

Dynemech Microscopy Vibration Isolation Table Series DIT E 01

Dynemech Anti Vibration Tables - Series DIT-E are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise measuring accuracies. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%.

Size:500x500x800mm                                              Load Capacity:250Kg/pc                                Surface Plate Thickness(mm):80mm              Natural Frequency At Max. Load (Hz):7 To 8 Hz

Weight Of 04 Nos ( Kg.):480 Kgs                     Box Dimension:23"X23"X10" & 23"X23"X29"                                   Number Of Box-08

Material: Powder Coated Low Carbon Steel Frame , Rubber & Granite Surface.

Colour: Black

Note- GST and Freight Charges are not included.
