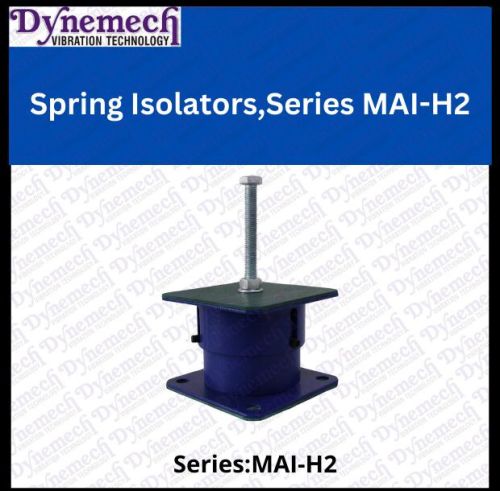

Polished Cast Iron Dynemech Spring Isolators Series MAI-H2

Dynemech Spring Isolators provides high vibration isolation to plant and machinery and HVAC equipments.These isolators are compact and economical.

 Size:HO(mm):66mm To 92mm                                                 HI(mm):86mm To 101mm                                                      Load (Kg):25-200Kg/pc To 500-1400 Kg/pc

Bolt Size:M12X1.75X100mm To M12X1.75X100mm

Top Plate (AxB)(mm):110x110(mm) To 125x125(mm)

Bottom Plate (CxD)(mm):110x110(mm) To 125x125(mm) CC(mm):90mm To 95mm                                                   Natural Frequency Range(Hz):3.5-10Hz To 5.0-09Hz

Weight Of 04 Nos ( Kg.):11 Kgs

Box Dimension:13"X8"X7"

 Number Of Box-01

Material: Low Carbon Steel & Rubber

Colour: Blue & Grey

Note- GST and Freight Charges are not included.
