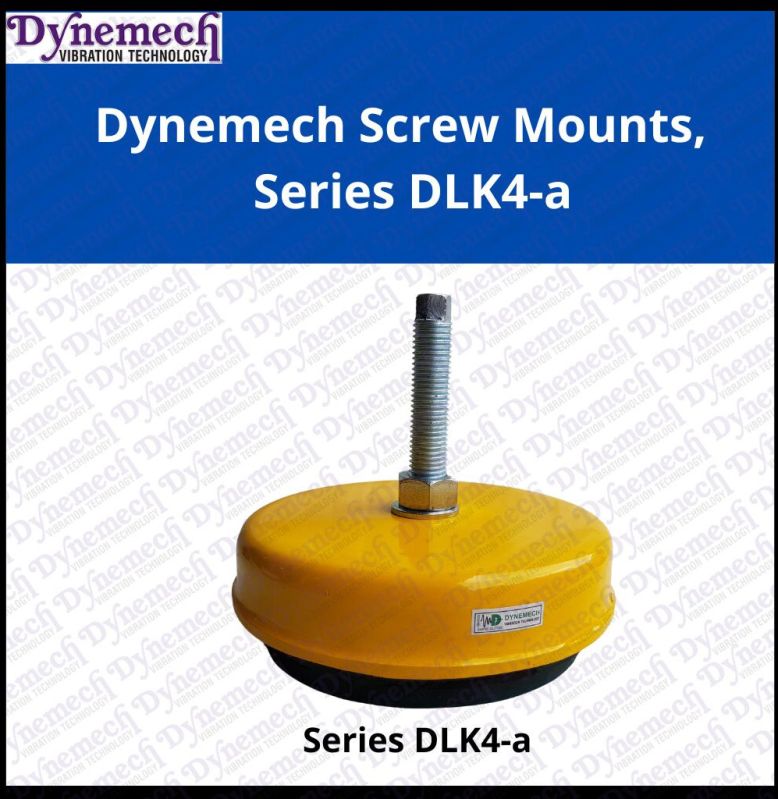

Dynemech Vibration Isolation Mounts for Industrial Equipment Series DLK4-a

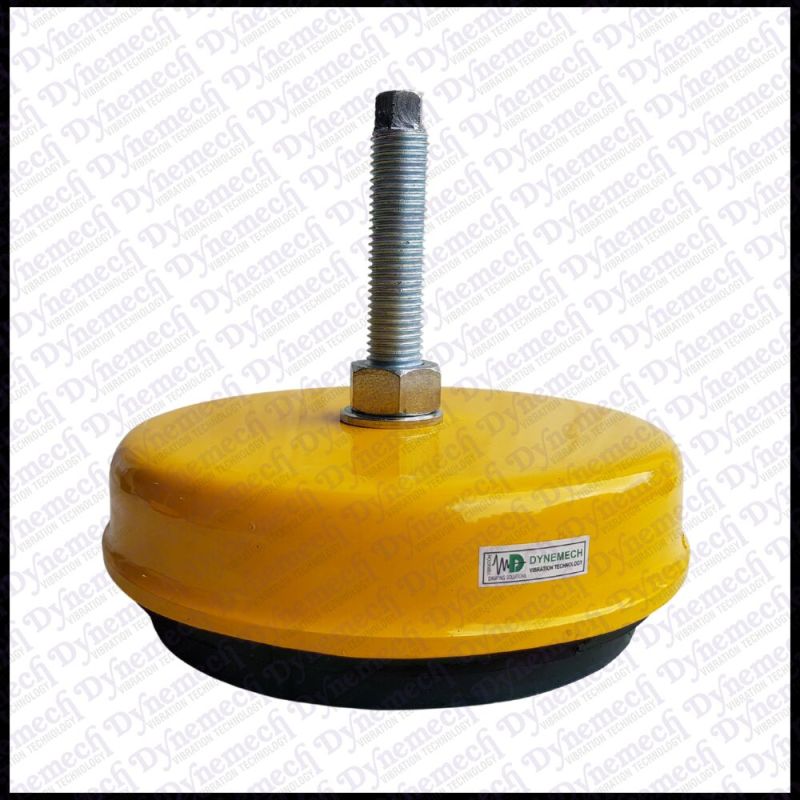

Dynemech Screw Support Mounts Series DLK are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.

The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines. These vibration isolation plates are resistant to water, almost all the coolants, chemicals, fuels, lubricating oils used in the modern machine shop. These vibration insulating machine pads will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates.

Size :Dia-238(mm), Height-80(mm)

Load Capacity (Kg.):4000 Kg/pc

Bolt Size: M24X3.0X150mm

Adjustment

range (mm):20

Working Temp Range °C:-From -15 to 80

Weight ( Kg.):8 Kg.

Material:Rubber+Cust Iron+Mild steel

Colour:Red powder coating

Note- GST and Freight Charges are not included.
