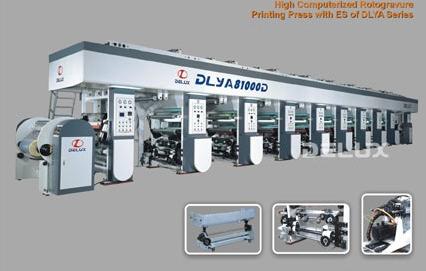

E-axis High-speed Gravure Printing Machine 81000d

We are offering our customers a wide range of E-Axis High-Speed Gravure Printing Machine 81000D, which are available following Specifications :-
Printing Colors: 8 colors
Applicable Printing Base Materials:
BOPP Film: 18~60µm
CPP Film: 30~60µm
Nylon Film: 20~50µm
PE Film: 40~80µm
PVC Film: 25~70µm
Cellophane: 20~30µm
PET Film: 12~60µm
Printing Width: 650~1050mm
Max mechanical speed: 320m/min
Max Printing Speed: 300m/min(Printing speed depends on the property and thickness of base material, property of solvent, ink amount of printing, property of ink and other factors. Version Trail≥Φ180mm)
Comprehensive Registration Precision: Longitudinal ≤±0.1mm transverse ≤±0.1mm
Tension range: 3~25kg/ web
Diameter of printing plate: 120 ~350mm
Print repeat length: 376~1100mm
Width of printing plate: 600~1120mm
Width of Guidance Roller: 1100 mm
Machine frame internal width: 1600 mm
Diameter of unwinding and rewinding: Max 6-800 mm
Drive motor: 4 kW AC servo motor×8 sets,7.5 kW Frequency conversion motor×4 sets,2 kW AC servo motor×2 sets
Machine equipped with the total power of about 574Kw(the actual use of the equipment, the power of 50~70%),in which motor power 145Kw,electric heating power 426Kw,else 3Kw.
Air Source: Clean Compressed Air After Filtering Water and Oil (Pressure 6~8Kg f/cm2 )
Machine weight: 52000 kg
Dimension: 25400(L)×4800(W) ×3800(H)mm
Color of Machine: ivory(or chosen by clients)
Large decorative panels Senior
Printing flow: From left to right
