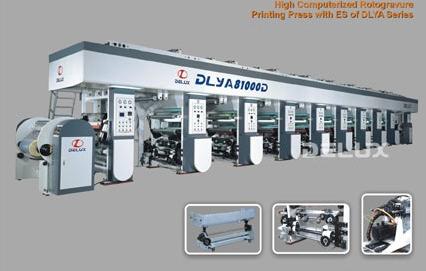

E-axis High-Speed Gravure Printing Machine

We are offering our customers a wide range of E-axis High-Speed Gravure Printing Machine, which are available following Specifications :-
Printing Colors: 8 colors;
Applicable Printing Base Materials:
BOPP Film: 18~60µm
CPP Film: 30~60µm
Nylon Film: 20~50µm
PE Film: 40~80µm
PVC Film: 25~70µm
Cellophane: 20~30µm
PET Film: 12~60µm
Printing Width: 650~1050mm
Max mechanical speed: 220m/min
Max Printing Speed: 200m/min(Printing speed depends on the property and thickness of base material, property of solvent, ink amount of printing, property of ink and other factors. Version Trail≥Φ150mm);
Comprehensive Registration Precision: ≤±0.1mm (BOPP/PET);
Tension range: 3~30kg
Diameter of printing plate: 120 ~320mm
Print repeat length: 376~1005mm
Width of printing plate: 600~1120mm
Width of Guidance Roller: 1100 mm
Machine frame internal width: 1600 mm
Diameter of unwinding and rewinding: Max. 800 mm
Drive motor: 4 kW AC servo motor×8 sets
Machine equipped with the total power of about 417Kw(the actual use of the equipment, the power of 50~70%),in which motor power 114Kw,electric heating power 300Kw,else 3Kw.
Air Source: Clean Compressed Air After Filtering Water and Oil (Pressure 6~8Kg f/cm2 )
Machine weight: 42000 kg
Dimension: 20800(L)×4800(W) ×4200(H)mm
Color of Machine: ivory(or chosen by clients)
Large decorative panels Senior;
Printing flow: From left to right.
