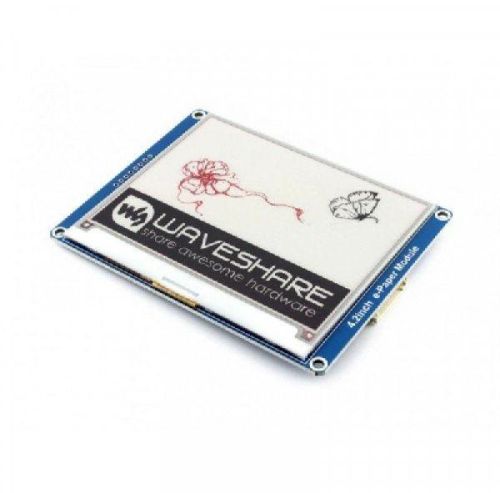

E-Ink Paper Display Module

₹ 3,275 / Piece

PurityNo backlight keeps displaying last content for a long time even when a power down,Ultra low power consumption, basically power is only required for refreshing
Weight (GM)58
Outline dimension (mm)90.1 77 1.18
VCC3.3V/5V
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Product Details

PurityNo backlight keeps displaying last content for a long time even when a power down,Ultra low power consumption, basically power is only required for refreshing
Weight (GM)58
RSTExternal reset, low active
Display ColorBlack and White
GNDGround
Display Resolution400300
Refresh Power26.4mW(typ.)
DCData/Command selection (high for data, low for command)
CLKSPI SCK pin
DINSPI MOSI pin
Viewing Angle>170
Standby Power (mW)<0.017
Outline dimension (mm)90.1 77 1.18
Grey level2
Interface3-wire SPI, 4-wire SPI
Dimensions in mm (LxWxH) 114 x 80 x 12
BUSYBusy status output, high active
CSSPI chip selection, low active
Dot Pitch0.212 0.212
VCC3.3V/5V
Full Refresh Time (s)4
Operating Voltage (VDC)3.3
