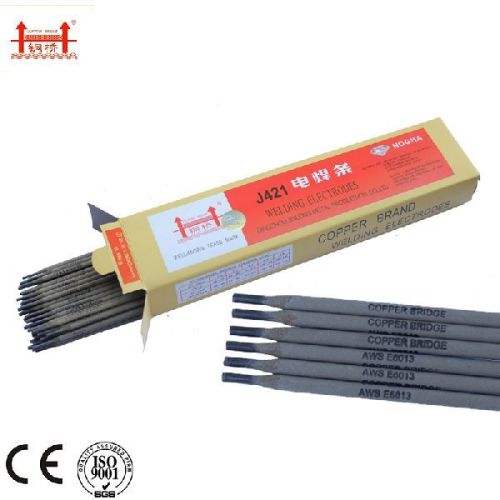

E7016 Low Price Weld Electrode AWS E7018

E7016 Low Price Weld Electrode AWS E7018 Aws E7018 used for welding carbon steel and low-alloy steel strutures, such as 16Mn,etc. AWS E6011 suitable for butt welding ,fillet welding and lap welding on thin plates, such as low-carbon steel structures like flues of power stations, air ducts, transformer oil tanks, hulls, exterior panels of cars, etc. Product Name E6011 E6013 E7018 Model CB-J425 CB-J421 CB-J507 GB E4311 E4313 E5018 Diameter(mm) 2.5-5.0 2.5-5.0 2.5-5.0 Type of Coating Cellulose Type Tiatania Type Low-hydrogen Type Current AC DC AC DC AC DC Reference Current (AC, DC)   Diameter   2.5mm 3.2mm 4.0mm 5.0mm Current(A)   30-50 80-100 110-130 150-200 Chemical Composition Of  Deposited metal  Carbon (C) Manganese (Mn) Silicon (Si) Sulfur (S) Phosphorous (P) ≤0.20 0.3~0.6 ≤0.2 ≤0.035 ≤0.040 Mechanical Property Of Deposited metal Rm (Mpa) ReL (Mpa) A (%) Akv Import Test(V-notch) (J)   ≥460 ≥340 ≥25 27(-30 °C) Reference current (AC/DC) Model Rod diameter 2.5mm 3.2mm 4.0mm 5.0mm E6013 Rod length 300mm 350mm 400mm 400mm welding current (A) 50-90 90-130 130-210 170-230 E6011 welding current (A) 30-50 80-100 110-130 150-200 Feature Business Type: Manufacturer, Trading Company Brand Name: COPPER  BRIDGE Certificate: CE, ISO, BV, SONCAP, ICQ, CCS Main Market: South America, Southeast Asia, England, Korea, America, Africa Advantages 1. Excellent operating performance
