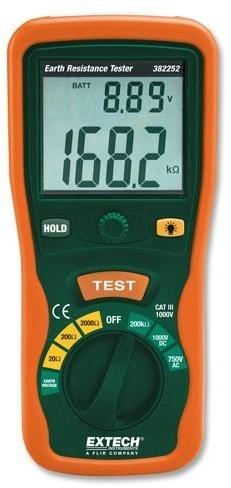

Earth Resistance Tester

₹ 7,800 / Piece

Product Details

Over Range Indication“1” (MSD)
Display LCD- 3½ Digit 2000 counts LCD Back-light display.
Dimensions163(L) X 102(W) X 50(D)mm
Weight480g approx.(battery included)
Earth Voltage0-200V AC (40-500Hz)
Data Hold Indication“DH” symbol appears on the display
Earth Voltage±(1%rdg + 2dgts)
Power Supply1.5 V X 6.Type AA batteries.
Open Circuit IndicationLED will be unlit
Measurement SystemEarth resistance by constant current inverter 820Hz approx. 2mA
Low Battery Indication“B” symbol appears on the display
Earth Resistance±(2%rdg + 2dgts) or ± 0.1Ω which is greater.
Earth Resistance0-20Ω / 0-200Ω / 0-2000Ω
Earth Resistance Resolution0-20Ω (0.01Ω); 0-200Ω (0.1Ω); 0-2000Ω (1Ω)
