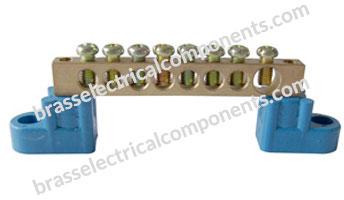

Earth Terminal Blocks

Material:

• Insulator: Polypropylene, 360 Brass, Copper
• Movable Bar/ Fixed Bar: Nickel Plating Copper
• Basement: Reinforced polypropylene
• Bolt and Nut: Nickel Plating Brass, Trivalent Chromate Plating steel

Mounting:

• DIN rail-mountable

Ground:

• Rated surge voltage: 8 kV
• Surge voltage category: III
• Connection in acc. with standard: IEC 60947-7-2

Connections:

• Connections: Spring cage
• Wire: 28–10 AWG
• Stripping length: 3/8 in. (0.95 cm)
• Internal cylindrical gage: A4

• High-grade, strain-crack and corrosion proof copper alloys and 360 Brass alloy to prevent electrolytic corrosion and rusting.
• Screw locking maintenance-free design ensures proper operation and prevents screws from backing out, so tightening of the terminal screws is not necessary.
• As the Earth Terminal will be fastened on to cabinet enclosure by using screw.
• The work at the time of expansion and the renovation on site will become easy.
• In case that welding inside the cabinet enclosure with surface treated steel plate might be difficult, this earth terminal will be convenient and useful.

• Use to measure the earth resistance of electrical instruments and electrical circuits.
• Use for the wiring to grounding circuits at Cubicles, Earth terminal boards.
• For use in all industries with potentially explosive atmospheres.
• Reliable protection against transient overvoltage and electromagnetic fields.
• For temperature-related fluctuations in pressure on the cable.
