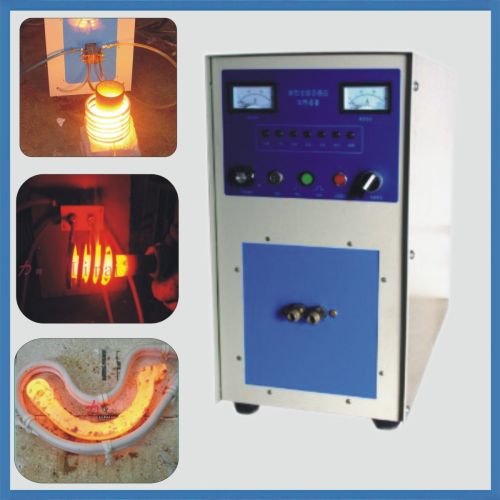

Easy Operate IGBT Portable Induction Heater

We offer Easy operate IGBT portable induction heater.
Technical parameters of induction heater 30 KW:
Model
WH-VI-30
Worker power
Three phrase 380V50Hz
Working voltage range (AC)
342V~430V
Max output power
30KW
Oscillation frequency
10-60KHz
Continuous load rate
100%
Cooling water pressure
0.1-0.3mpa
weight
45kg±5%
dimensions(L*W*H)mm
580*280*510
Particular recommended
Drill rod heated, brazing
Temperature protection
50 degrees
Applications of LIPAI (brand) induction heater:
1,Parts surface heating treatment,parts surface hardening,annealing,etc. Such as gears, shafts, spline shaft, camshaft,handtools,electric power tool,pipes,etc.
2,Metal brazing,high-frequency brazing,pan bottom brazing,tool head brazing,copper brazing,induction soldering,etc.Such as diamond saw blades,carbide cutter, pick coal teeth,woodwoking tool,etc.
3.Forging,shaping,warm bending,high frequency shrinkage fitting,heat enveloping,metal desiccating,nut inserting,rotor inserting,etc. Such as heating sphere billet to remove inserts.
4.Precious metals melting,such as gold,silver,copper,zin,etc.
5.Dry resin, resin coating, warm resin forming,shrinkage fitting and extraction ect. Such as heating steel wire to paste PVC,etc.
6.Other applications , depend on you and me to find together . Waitiing for you !
Featuers of induction heater
1.This product adopts the latest MOSFET, IGBT frequency conversion conttrol technology to ensure high efficiency, low energy and high output power;
2.It has constant current and power control function, which significantly optimize metal heating process, thus realize high-efficient and fast heating and bring the advantages of the product into full play;
3. As many as ten types of fault protection and display including overcurrent, overvoltage, water shortage and phase missing protection and display, which provides higher reliability and durability;
