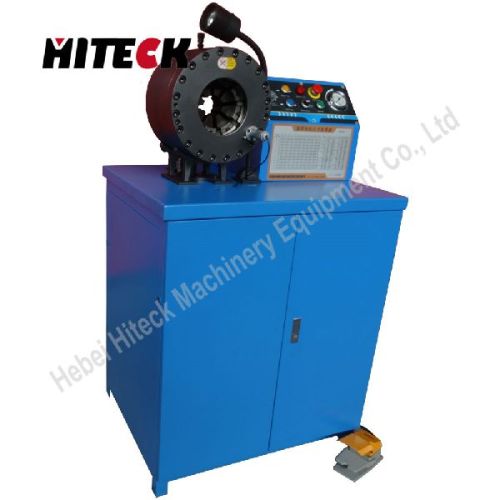

Easy Operation Rubber Tube Crimping Machine HT-91C-6

Easy operation rubber tube crimping machine HT-91C-6    P PRODUCT DESCRIPTION Product description Hydraulic crimping machine HT-91C-6 is choice for crimping 1/8 inch to 2 inch 6SP hydraulic hose based om max opening (125mm), high force ( 6400 KW) and steady quality. Hose crimping machine HT-91C-6 Special NEW foam inserts introduced to protect your machine from debris dropping into the bottom of the head. With there you will minimize the risk of debris getting into the cylinder which could cause damage to seals and other moving parts of the head. This will significantly extend the life of hydraulic hose crimping machine.  The techincal data of HT-91C-6  TECHNICAL DATA Max hydraulic hose 2"4SP Crimp range 4-87mm Die type 91 dove-tailed type Max opening without dies 122mm Max die opening 28mm Motor & Voltage 380V/3kW Open time ≤1.5s Close time ≤6s Control Button Micro Touch Screen Foot pedal included Noise level ≤75dB Die sets 10sets Machine weight 310kgs Package weight 380kgs Machine size 800*630*1376(mm) Package size 890*720*1590(mm) Quick change tool optional Backstop device optional Hose crimping machine HT-91C-6 dies chart  Standard Dies Of HT-91C-6 (Dovetail Type) NO. Die NO. Die Bore(D) Die Length(L) 1 Φ6 15mm 65mm 2 Φ8 18mm 65mm 3 Φ10 20mm 65mm 4 Φ13 23mm 65mm 5 Φ16 26mm 65mm 6 Φ19 29mm 65mm 7 Φ25 37mm 65mm 8 Φ32 46mm 78mm 9 Φ38 51mm 78mm 10 Φ51 63mm 78mm  Hose crimping machine HT-91C-6 application:
