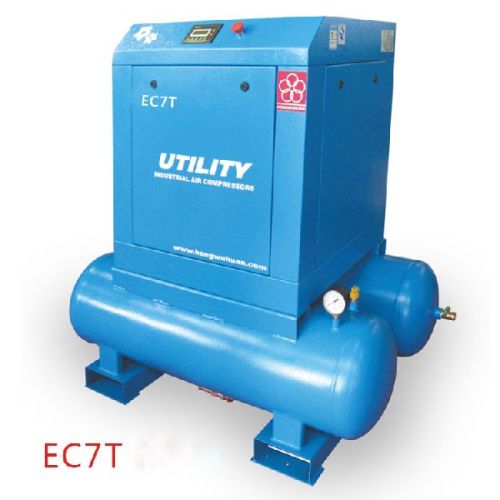

EC7T 10hp Screw Air Compressor With Tank

Ec7t 10hp screw air compressors with tank are easy to move, suitable for use in the traditional industrial and household areas.the efficiency of 10hp screw air compressors with tank is high,noicse is low. 10hp screw air compressors are matching enlarged mute-type axial fans to ensure sets to operate normally under high temperature conditions. Ec series technical parameters                                                                                                          model parameters ec7t ec7 ec11 ec15 ec22d ec37d ec55d air displacement m³/min 1.15 1.15 1.62 2.3 3.6 6.1 10.2 discharge pressure mpa 0.8 compressed stage single motor power kw 7.5 7.5 11 15 22 37 55 motor speed rpm 2950 power supply v/p/hz 380/3/50 start mode direct start y-△ drive mode belt drive direct drive air inlet size g3/4" g3/4" g3/4" g1" g1" g1-1/2'' g2" cooling method air cooling length mm 1165 705 905 905 1180 1340 1600 width mm 725 600 745 745 800 900 970 height mm 1170 950 1055 1055 1100 1240 1450 net weight kg 250 210 290 310 500 780 1300 certificates.
