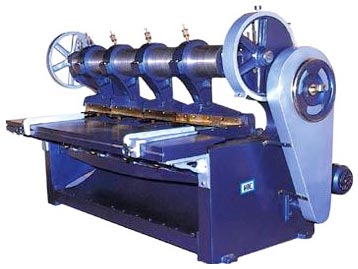

Contact SupplierWe are offering Eccentric Slotter Machine.
we are enlisted as one amidst the preeminent eccentric slotter machines manufacturers & exporters from india. the eccentric slotter machines, offered by us, are ideally designed for simultaneous creasing and cutting. additionally, customers are eased with the availability of the eccentric slotter machines with all advanced configurations.
construction
our eccentric slotter machines have two pairs of shafts, the front pair is with cutting dies and the rear pair is with creasing dies. you can also adjust the position of the lower shaft by revolving side wheel, in accordance to the ply of the board. moreover, two guides are available for easy feeding.
popular for
slotting a huge number of sheets at one time adjustable distance between slots depth and two slots dimensional accuracy longer service life.
Size | 65" | 75" | 85" | 95" | 105" |
---|---|---|---|---|---|
Capacity | 30" | 30" | 30" | 30" | 30" |
Min. Space B/W Slots | 5" | 7" | 7" | 8" | 8" |
Max. Space B/W Slots | 14" | 17" | 18" | 21" | 21" |
Corner Width | 2.78" | 3.5" | 3.5" | 4" | 4" |
Power Required | 2 HP | 3 HP | 3 HP | 5 HP | 5 HP |
Floor Space | 90"x54" | 100"x56" | 110"x56" | 120"x60" | 130"x60" |
Gross Wight | 1600 Kgs. | 2100 Kgs. | 2300 Kgs. | 2500 Kgs. | 2700 Kgs. |
