ECG Machine, Machine Type : Digital

We are offering ecg machine.

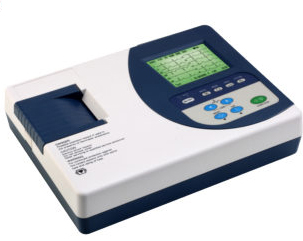

pioneer ekg312 applies a large lcd monitor to display 12 channels of ecg wave. It presents real-time clock, real-time measurement and ecg parameter. Ecg312 is able to save 8 patients`ecg data and last up to at least 2 hours`working time with li battery. Usb and rs232 ensure the data transfer to pc.
features
simultaneously acquisition of 12-lead ecg data, iec class i, safetyã�â standardã�â leads:ã�â  type cf
manual:ã�â single channel or threeã�â ã�â  ã�â  auto i:ã�â  standard three channelã�â ã�â ã�â  auto ii:ã�â  standard singleã�â channel plus rhythm leadã�â ã�â ã�â  auto iii: arrhythmia analysis
measurementinterpretation and distinguish point printing function under auto mode operationã�â
filters: ac, hum, dft
gain: 2.5,5,10,20 and auto five levels
real-time clock, real-time measurement and presenting of ecg parameter
large lcd (240*320dots) display 12 channel ecg wave forms
battery: high-efficiency lithium battery, at least 2 hours' working time
function of heart rate detection and protection against pulse shock while pacemaker applied
storage of 8 patients' ecg data
power: 220v110v ( + 10%), 5060hz selectable
usb interface and rs232ã�â ensures conveyã�â ofã�â ecg data
option:ã�â ã�â ecg software for net-working capacity
advantages:
12-lead, 3-channel ekg
lcd display
128 patients' information storage
usb connection as option
rs232 pc connection as standard configuration
upgradable for better configuration
recording paper:63mm*20ml 63mm*30m
standard accessories: patient cable(1 pc), chest electrodes(6 pcs), thermal paper(1pc), rechargeable battery (1pc)
gross weight:4.5kg
net weight:3.5kg
unit size:300*230*61mm
packing size:375*295*195mm
specification
leads standard 12 leads
acquisition simultaneous 12 leads
resolution 18bit1000hz
operating mode manual mode,3 auto modes (with measurement report)
filter ac ,emg filter
drift filter anti-drift system
cmmr >60db
>100db(with ac filter)
input circuit floating, protection circuit against defibrillator effect
input circuit current 50mq
patient current leakage 3.2 s
frequency response 0.05-150hz
noise level.
