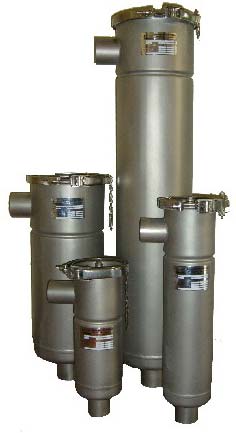

SS 304 Eco Bag Filter Housing (EBV-B2-6S6-2F-V)

Buy precision-engineered, robust, dimensionally accurate and durable Eco Bag Filter Housing (EBV-B2-6S6-2F-V) at competitive prices from us. Available in varied specifications, our filter housings can be customized as per requirement.
Details :

• Model No : EBV-B2-6S4-2F-V

• Place of Origin : Zhejiang, China (Mainland)

• Brand Name : Ecofine

• Size : #1,#2,#3 & #4

• Bag Size : 7"x17" & 7"x32",4"x8" & 4"x16"

• Material : Stainless Steel 304, 316, Carbon Steel

• Surface Treatment : Electropolished or Glass Bead Blasting polished

Payment & Shipping Terms :

• Unit Price : 200.0~900.0 USD

• Trade Term : FOB

• Payment Term : L/C, T/T

• MOQ : 2 Set/Sets

• Means of Transport : Ocean

Supply Capacity :

• Production Capacity : 500pcs

• Packing : one piece one carton

• Delivery Date : 20-25days.0

Highlights :
Single Stainless Steel ECO-IT Filter Bag housing, Bag filter vessel, Filter Bag Housing

• Economic Side Flow

• Available for 7"x17",7"x32",4"x8" & 4" 14"

• Viton Seal Ring under Basket

• Inlet/Outlet BSP 2 lange & BSP 1 1/2

• V style Band Clamp

• Adjustable Mounting Legs

ECO-IT Filter Bag housing, Bag filter vessel, Filter Bag Housings
Model : (1)- (2)- S(3)- (4)-(5) - (6)

• 1: TBF (Top Flow Style)

  • SBV ( Side-Entry Style)
  • EBF (Band Clamp Style)
  • QLBF (Quick-lock Multibags style)
  • DTBF (Double Top Flow bag housing )

• 2: Size 1,Size 2,Size 3 & Size 4

• 3: 4 (Stainless Steel 304)

  • 6 (Stainless Steel 316)
  • CS( Carbon Steel )

• 4: Connector 1.5 BSP,1.5 NPT

  • Flange: DN50,DN100

• 5: Glass Beaded blasting Polished or Electropolished

• 6: O Ring : VITON,EPDM,NBR & Silicon
