Eco-friendly Recycling Machine

Offer Eco-friendly Recycling Machine.

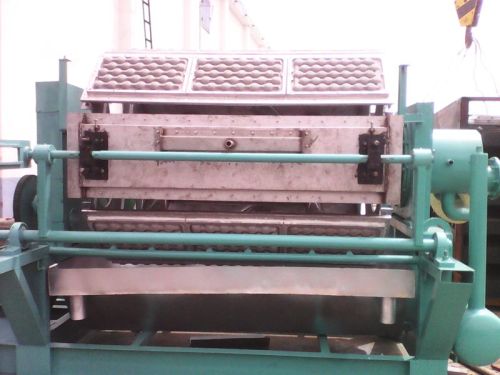

The equipment is a eight-sided rotary molding machine, it is suitable for the customers who have the mass production of 70000 pieces per day, such as egg tray, fruit tray and bottle tray.Main Equipment:
1. Pulping System
Pulper:1.5m³,7.5kw Stirrer:3kw*2 Pulp Pump:3kw Sewage Pump:1.5kw water pump:5.5kw
2. Molding System
Molding equipment total has eight molding templates, one transfer template, every molding template can be loaded three thirty-egg tray mold, total twenty-four sets. Molding efficiency is 8-18 cyclemin, with vacuum automatic drainage system
3. Drying System-traditional drying room
Overall dimension: 20*3*2.2m, cart-like drying, one burner, 35-40 carts.
Construction materials: standard red brick 25000 pieces; concrete plate 0.5*1.8m, 80 pieces; Cement 5-10 T; Firebrick, 1000 pieces.
Main energy: Domestic, coaldry sticks; Abroad, LPGGASCoalDiesel, it can be choose naturally drying in little rain area.
4.Sack and bale system after drying
Automatic counting after drying , height limit pressor, easy to stock and transport.
5. Auxiliary equipment
Vacuum pump: 26kw, one set; Air compressor: 7.5kw, one set; air storage tank
Production line
1. Capacity: 2500 pieceshour (For thirty cell tray)
2.Production line length ≥30m，width≥15m, workshop: length≥8m, width≥7m, height≥3.5m, the finished products room must be greater or equal to 150m²
3. Production line total power: 30-55kw (According to the equipment of customer choice)
4. Production line worker total 5-7 persons.
5. This production line is configured by 30-eggs tray as standard, if it is used to produce egg carton, fruit tray, coffee tray, etc, it needs auxiliary equipment, like hot press machine, sticker, or printing machine etc. Corresponding area
