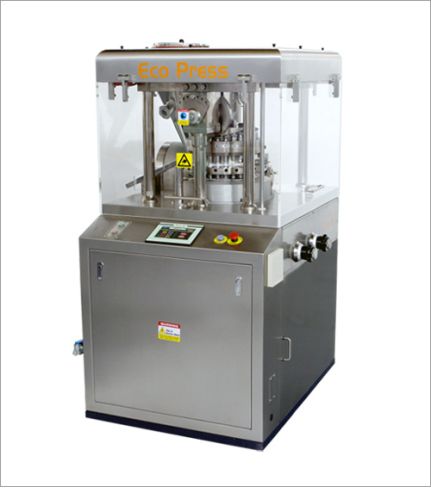

ECO Standard Model Tablet Compression Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

ECO III - Standard Model GMP model with 20 & 27 station in “D” & “B” tooling Electro magnetic clutch for heavy duty application ACVF Drive for the main motor High torque motor....

View More Details

Send Enquiry

Company Information

Parle Elizabeth Tools Pvt Ltd

Vasai, Mumbai, Maharashtra

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

ECO III - Standard Model

GMP model with 20 & 27 station in “D” & “B” tooling
Electro magnetic clutch for heavy duty application
ACVF Drive for the main motor
High torque motor for better tablet compression
Ideal for Effervescent tablets/Veterinary/Non pharma applications
Sturdy center pillar construction to withstand high load application
25mm diameter round tablet compressed with ease

General Specification

Precision machined Electroless Nickel Plated Turret with lower punch seal
Aluminum Hard Anodized Gravity Feeder
Compression rollers tonnage capacity of 100kN/10tons for D & 65kN/6.5Tons B & BB Tooling
Variable Upper Punch Penetration 1.5 to 8.0mm
PULL DOWN CAM Alloy Steel (EN353) for reduced dust generation during upper punch entry
Turret drive through robust external worm & worm gear system
Tablet Parameter Control from out side of the machine through Controlling Knobs
Sturdy center pillar construction to withstand high load application
