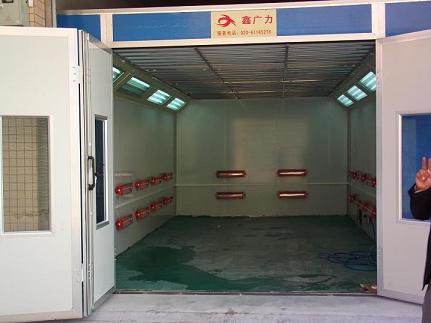

Economical Environmental Spray Booth

We are offering economical environmental spray booth.xin guang li qx500a economical and environmental spray baking booth
1 exterior size 7000x5000x3050(mm)(l*w*h) interior size 6900*3900*2650(mm)(l*w*h)
2 entrance door three doors with 1.8mm aluminum alloy wrap-around . Door size:1000*2600mm(w*h). Color free choice.
3 working door one door(size:700*1700mm(w*h), the door's color is the same as the wall.
4 wall 50mm eps (epispastics polystyrene ) with 0.426mm colored steel
5 lighting up side 45° degree equipped with 8 groups of appropriable lamp boxes ,each group has three 40w special lamp.
6 cabinet device intake air from upside, exhaust wind from downside. It can set according to the present situation .tube frame size:50*50mm. Cabinet is made of galvanized plate(thickness is 0.8mm)
7 exhaust machine(1set) one set axial flow fan. Single set parameter:yow5.6m2.2kw.15640m³/h
8 heating system (1set) equipped with 24 groups of infrared carbon fiber heating pipe(1000w each group).baking room temperature setting:5o centigrade to 60 centigrade
9 filtration system room equipped with cc-g600 high-efficiency filtering device,which can effectively filter 5pm dust particles,.air inlet(1000*1150mm) opens from the top of the wall is the primary filtering device. Roof is made of light steel.this filter is natural ventilation. The top cotton is item600
10 roof 50mm eps with 0.426mm colored steel
roof construction is consist of six square tubes (each tube size:40*80)
11 electric control system including painting , baking, temperature controller, fault led, power switch, emergency stop switch, and hour meter
12 voltage frequency 380v,50hz
13 wind speed more than or equal to0.25m/s
14 light intensity more than or equal to 1000lxs
15 total power 28kw
16 outlet air pipe the wind pipe is made of galvanized plate(thickness is 0.8mm) with stiffener. Two straight pipes(each pipe size:700*700*1000), one bend pipe
17 environment protection filtration three layers activated carbon in accordance with china 's environment protection bureau request.
18 price 5047$
