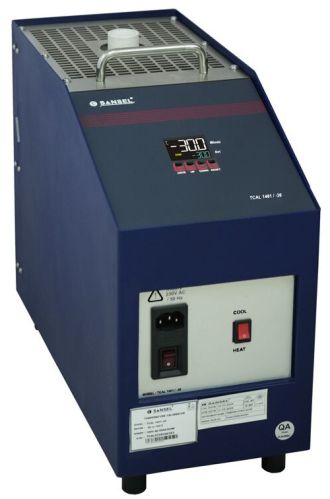

Economy Dry Block Temperature Calibrator TCAL 1401/-30

SANSEL Model TCAL 1401 / -30 Dry well Temperature calibrator are high performance for industrial atmosphere and covering temperature range from -30* to 100°C. Which are ideally suited onsite calibration of thermocouple, RTDs, Indicator with sensors & 4-20mA signal transmitter with indicator in Food, Pharmaceutical and all types of process industries. Having it's advantage of user friendly, light weight, portable, fast settling, better uniformity and accuracy over a wide temperature range. TCAL 1401 / -30 having interchangeable inserts to suit for calibration of different diameter of sensors (upto 22mm). Additional Inserts (optional) with special drillings are available to order.

Specifications:

• Model: TCAL 1401/ - 30
• Display: 0.58” (15mm)(Block) / 0.3”(7.8mm) (Set) 4 digit LCD Display with 4 keys
• Temperature Range: -30 to 100°C (*@Ambient 25°C)
• Radial Uniformity: Better than 0.15°C
• Resolution: 0.1°C
• Stability: ± 0.1°C
• Temperature readout: °C
• Heating time: 20 mins (Amb. To 100 °C)
• Cooling time: 25 mins (25 to -30 °C)
• Stabilization time: 10 minutes
• Well Dimension (dia. X height): 22 x 120 mm
• Standard well holes in mm: 5.2, 6.2 & 6.2
• Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power consumption: 500 VA
• Overall Dimension in mm: 490 x 178 x 357 (L x B x H)(Approx.)
• Instrument Weight: 12.5 kg (without well insert) (Approx.)
