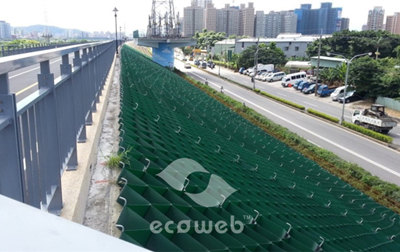

HDPE Ecoweb Geocell For Slope Protection

1. Introduction:
ecoweb geocell is widely used in construction for erosion control, soil stabilization on flat ground and steep slopes, channel protection, and structural reinforcement for load support and earth retention. It is made with ultrasonically welded high-density polyethylene (hdpe) strips and expanded on-site to form a honeycomb-like structure, and filled with sand, soil, rock, gravel or concrete.
2. Application:
load support
retaining wall
slope protection
channel protection
3. Product specification:
material: hdpe
place of origin: china
cell depth: 50-300mm
weld spacing: 260-1000mm
color: sand, green, black
type: textured & perforated
thickness: 1.5mm
seam peel strength: >16knm
packing: pallet or as customers' requests
4. Ecoweb advantage:
1. Ecoweb is stable and flexible with various types including:
· strip height: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm.
· weld spacing: 260mm - 1000mm
· strip length: maximum 8m long.
2. Production capacity:
· with two automatic welding lines, our production capacity is 2000-2500 m2 per day.
3. High performance:
· tensile strength at break: >25 knm astm d6693
· seam peel strength: >16 knm usace gl-86-19
· elongation at break: >900 % astm d6693
· oxidative induction time: >150 min astm d3895
5. About us:
egs geosynthetics is located in hefei city, anhui province, china.
Dedicating in ecoweb geocell for over 5 years. Ecoweb is now been widely used in the usa, japan, singapore, thailand, malaysia, middle east and africa, etc, to perform good solution on ground stabilization, slope protection and retaining wall projects.
