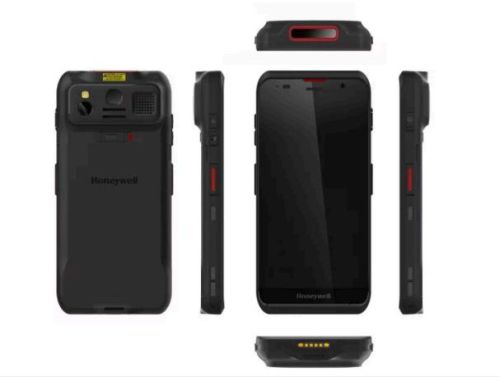

EDA52 Honeywell Mobile Scanner

Honeywell ScanPal™ EDA52 is an enterprise-class mobile computer that provides reliable and secure connectivity between frontline workers and backend systems. It's designed for retail use, logistics, manufacture, healthcare and public service.

ScanPalEDA52 is Honeywell’s next generation ScanPal series mobile computer equipped with the latest Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi5, Bluetooth5.1 and 4GLTE communication. A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day. The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication. The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes. Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0. The EDA52 (WWAN version) supports one nano SIM and one e-Sim simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards. The EDA52 is built on Android11 and can be upgraded to Android13* minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs

FEATURES

Application

Retail, transportation & logistics, manufacturing, healthcare, and public service

Camera

Front: 5-megapixed color camera

Rear: 13 - megapixel color camera

DIMENSIONS

Overall Dimensions

159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)

SCANNING SPECIFICATIONS

Decode Capability

Honeywell S0703 Slim Imager (1D/2D barcode symbologies)

NETWORK

WLAN Specifications

Additional WLAN Features: 802.11 d/e/h/i/k/ r/u/w

Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)

WLAN (Wi-Fi Alliance certified): 802.11 a/b/g/n/ac

WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP

Bluetooth Specifications

Bluetooth Class 5.1

WWAN Specifications

FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9, 12,13,17,19,20,25,26,28,30,66

GSM/EDGE: Bands 2, 3, 5, 8

TDD-LTE: Bands 38, 39, 40, 41

UMTS/HSPA+: Bands 1, 2, 4, 5, 6,8, 9, 19

GPS Specifications

GPS (WWAN only) Supported Protocols: Simultaneous receiver support for GPS, GLONASS, and BeiDou

SOFTWARE & FIRMWARE

Operating System

Android 11, and upgradeable to Android 13 (Android 13 is pending for the confirmation from Qualcomm & Google)

MEMORY & DATA

Memory

Storage Expansion: MicroSD (up to 128 GB)

HARDWARE

Display Size

Gorilla Glass 5, 5.5-inch

Processor

Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz

Display Resolution

1440 x 720 High Definition

Scan Engine Model

Honeywell S0703 Slim Imager (1D/2D barcode symbologies)

ELECTRICAL

Battery capacity

3.8 V, 4,500 mAh, removable

Battery Type

Li-Ion

Battery Types

Honeywell

ENVIRONMENTAL

Operating temperature

-20°C to +50°C (-4°F to +122°F)

Operating Humidity

5% to 90% (non-condensing)

STANDARDS & APPROVALS

Drop Specifications

Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperature

Multiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature

Tumble Specifications

550 times at 0.5 m (1.64 ft)

OTHERS

Durability

Electrostatic Discharge (ESD): ±8 kV direct; ±15 kV air

Environmental Sealing: IP67

Camera Position

Front and Rear
