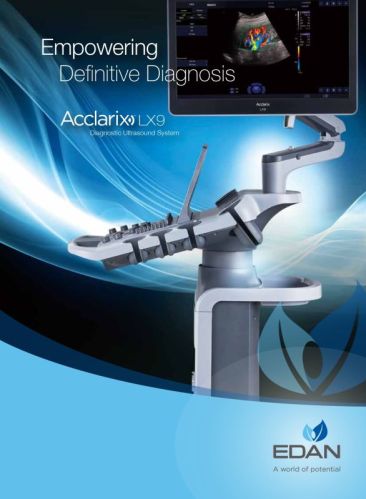

Edan Lx9 4d Colour Doppler Ultrasound Scanner

Listing ID #6523446

SCANNING MODE

• B-mode
• M-mode
• Anatomic M Mode 3 Lines
• Free angular M mode .
• TGC & LGC
• Color Doppler &Power Doppler Imaging/ with Adaptive Doppler Imaging
• Trapezoidal Imaging
• Power Doppler Imaging .
• Directional PDI
• Digital pan ZOOM
• Acoustic spot zoom .
• Auto trace .
• Dedicated Steer Control
• Special Compound Imaging (SCI)
• Auto IMT
• Auto NT.
• eVol. Flow
• eOB.
• eFollicle.
• eLV.
• Pulsed Wave Doppler
• Continuous Wave Doppler (CW Doppler)
• HPRF(High Pulse Repetition Frequency)
• Static 3D / 4D Package
• TDI(including Color-TDI and PW-TDI)
• Auto Optimization of B mode .Color mode, PWD mode .
• Needle enhancement visualization .
• Panoroma Imaging .
• Elastrography mode .
• Contrast imaging .
• AUTO   OB ( BPD.HC,FL,HUM)
• 5-Active Transducer Ports
• Battery Back-Up– Rechargeable Li-Ion Battery with Level Display in Main Screen and Charging Indicator
• Removable GEL Warmer  optional*
• Built In DVD Drive optional*
• WIFI Module
• USB 3.0 (One )& USB 2.0(Six)
• HDMI & Ethernet
• DICOM Standard

AI TECHNOLOGY

Systems have Artificial Intelligence.

MONITOR

• 21.5’’ high resolution TFT LCD monitor
• Tilt: 30° upward, 90° downward
• Swivel: ±90° ,  View angle: right 178°,left 178°,up 178 °,down 178°
• Built-in stereo speaker ,- Brightness and Contrast adjustable .
• Monitor on articulating ARM .

TOUCH SCREEN

• 14” Touch screen
• Gesture-control
• User configurable UI
• Support QWERTY keyboard for text input
• Brightness adjustable

TRANSDUCER PORT

• 5 active ports
• 5holders (1 dedicated for endocavity transducer)
• Electronic Transducer Selection

CONTROL PANEL

• Interactive back-lighting
• Hard Keys provides tactile feedback
• Programmable store keys
• Physical trackball
• Electronic lift up/down: 20 cm range up
• Left /  right swivel   90 degree both side .
• Retractable keyboard   with targeted down lightning .
• 8 segment TGC sliders
• Front and rear handles.

IMAGING STORAGE

• 1TB SSD.
• Storage up to approximately>400,000 lossless single frames
• Compression types of static image and clip: lossless, high, mid, low

IMAGE PROCESSING

• Tissue Adaptive Imaging(TAI)
• Adaptive Doppler imaging  - Frequency Compounding Imaging ,- Adaptive Spatial Compounding Imaging ,- Harmonic Imaging ,- Adaptive Speckle Reduction Imaging (eSRI)
• Spectrum Enhancement ,- B mode Auto Optimization ,- Color mode Auto Optimization
• PW mode Auto Optimization
• Digital Multi-Beam Beamforming - Up to 2949120 digital channels
• Trapezoid Imaging for linear transducer
• B Steer ,- Pan Zoom ,- Spot Zoom
• Needle Enhancement Visualization Imaging .
• Panorama imaging .
• Elastrography .
• Auto OB.
• Special Compound Imaging (SCI)
• Auto IMT
• Auto NT.
• eVol. Flow
• eOB.
• eFollicle.
• eLV.

POST-PROCESSING

• B Mode: gain, TGC, zoom, dynamic range, eSRI, colorize, map
• M Mode: gain, TGC, dynamic range, colorize, map
• Color Mode: zoom, color map, invert
• PW/CW: gain, dynamic range, colorize, map, baseline, angle, invert

Support review images and reportof an exam

• Support export images as BMP , AVI or DCM format to removable disk or DVD-R/RW
• Support export images as DCM format to DVD-R/RW
• Support import/export exams(including patient information, images, measurement results)
• Support comments, body mark and measurements in review

CONNECTIVITY

• DICOM 3.0
• DICOM storage ,
• DICOM modality work list.
• DICOM MPPS.
• DICOM print.
• DICOM query / retrieve.
• Mobile device transfer   optional **
• 6 USB Ports (4USB 2.0 and 2 USB 3.0)

Video out

• VGA,DVI, S-video: PAL/NTSC, -Ethernet.
• ECG port (inactive)
• Standard DVD-R/RW
• Wi-Fi

3D/4D

• Acquisition Modes: 4D, Static 3D
• Visualization Modes: Volume Rendering, PRs, Multi-Slice
• VOI adjustable: curve cut plane
• Render Modes: Surface, MIP, X-Ray
• 3D Clip (2D capture of 3D images))
• Cut
• Cut tool: trace, box, erase
• Function: undo, undo all, redo
• Display formats: Single 3D, Dual(A-plane + 3D), Quad(A/B/C Planes + 3D)
• Parameters for 3D: Threshold, Smooth, Brightness, Contrast, Tint
• eFace: Edan Auto show face
• Save and edit volume data set

BIOPSY GUIDE

Optional Available

TRANSDUCERS

• 1(One No )Convex Transducer -C5-2Q
• 1(One no) volume convex Transducer – C6-2MQ
• 1(One No ) Linear Transducer- L12-5Q
• 1(One No )Phased Array Transducer- P5-1Q
• 1(One No ) Endo-Vaginal Transducer- E10-3HQ

CERTIFICATION

• ISO
• European CE
• US  FDA
